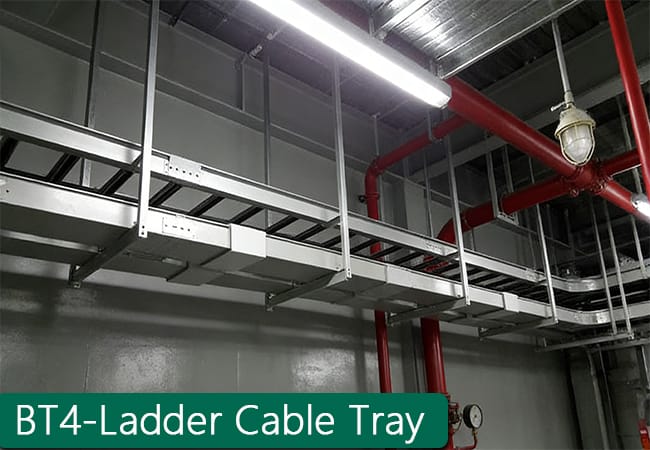

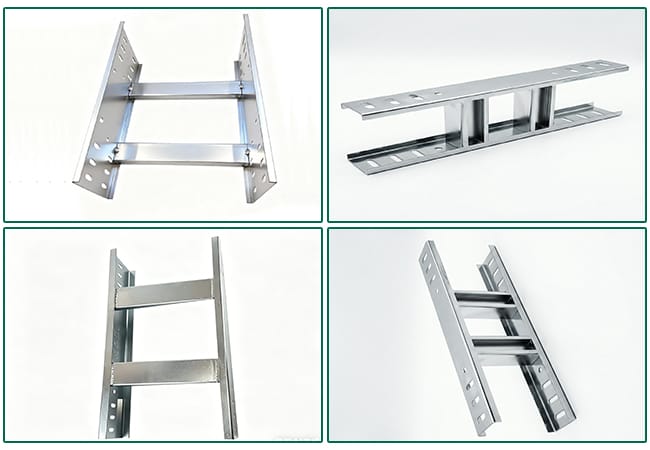

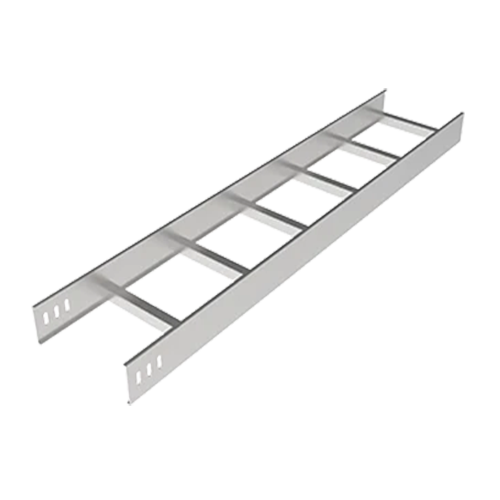

Ladder Cable Tray
- High Load-Bearing & Anti-Deformation: Reinforced side rails with evenly spaced ladder rungs, rigid welded structure supports long-span heavy cable loads without bending.
- Superior Heat Dissipation: Fully open ladder-style structure maximizes air circulation to cool power and communication cables efficiently.
- Ultimate Corrosion Resistance: Hot-dip galvanized, powder coated or anodized surface treatments withstand chemical, coastal and harsh outdoor industrial environments.
- Cost-Effective & Modular: Standard modular components and matching fittings enable welding-free rapid assembly to cut labor expenses and project schedules.
- Wide Material & Application Range: Manufactured from mild steel, aluminum alloy or FRP; ideal for power plants, factories, data centers, tunnels, railways and construction sites.
Product Speciffcations
Ladder Cable Tray Specifications
| Parameter | Specification |
|---|---|
| Height (mm) | 75, 100, 150, 200 |
| Width (mm) | 150, 200, 250, 300, 400, 500, 600, 800 |
| Length (m) | 2 (customizable) |
| Color | Industrial gray (customizable) |
| Material | Aluminum alloy, galvanized steel, stainless steel |
| Surface Treatment | Powder coated, electrogalvanized, hot-dip galvanized |

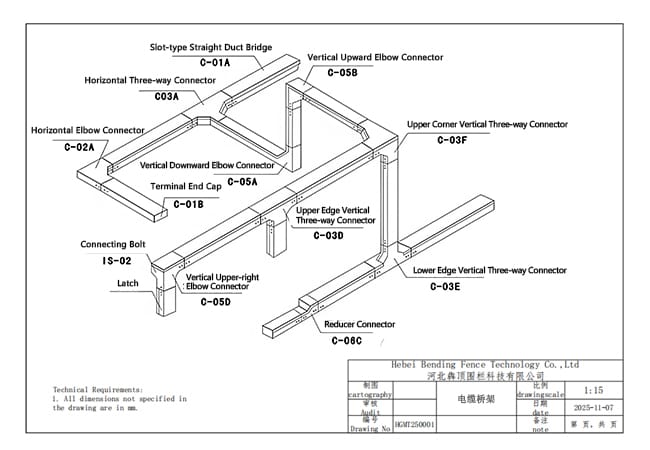

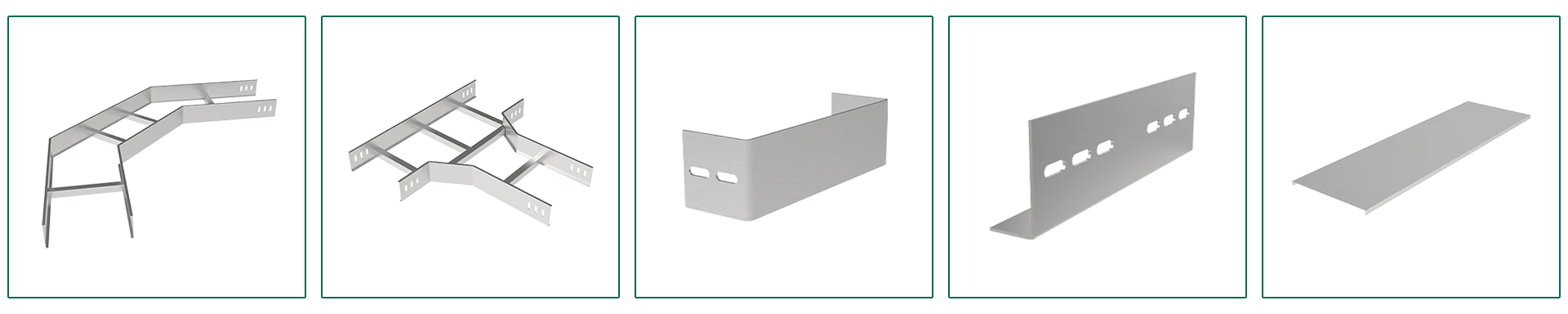

Special Accessories
- Ladder Cable Tray
- 90° Horizontal Elbow: Changes cable direction horizontally at 90 degrees, prevents sharp bending of cables, widely used for corner wiring layout.
- Horizontal Tee: Used for cable branching on horizontal plane, divides one main cable path into two branch lines for complex wiring systems.
- Connector (Splice Plate): Connects two straight cable tray sections together to extend the overall wiring route steadily.
- End Cap (Terminal End Plate): Seals the tray terminal end, stops cables slipping out and keeps dust out of the tray.
- Cover Plate: Covers the top of cable tray, protects inner cables from dust, impact and external damage.

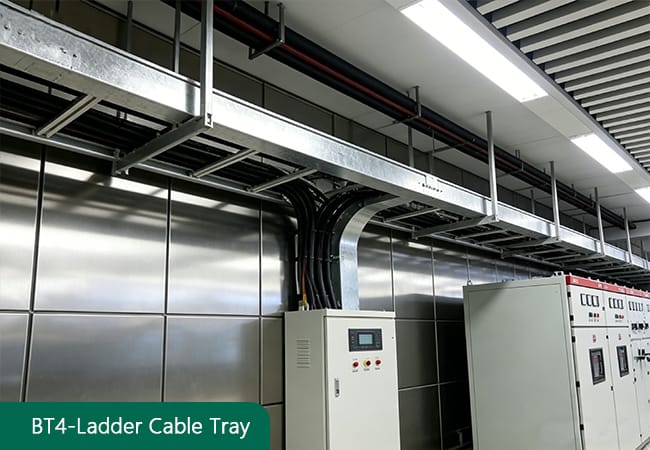

Applications of Ladder Cable Tray

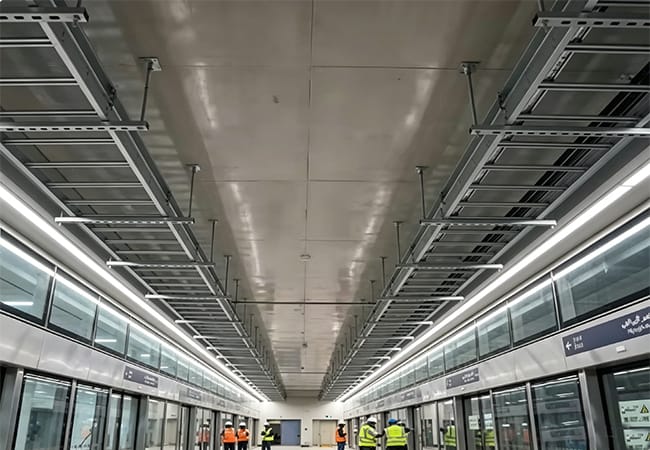

Metro Station
Sleek, reliable cable trays for clean and modern metro station infrastructure.

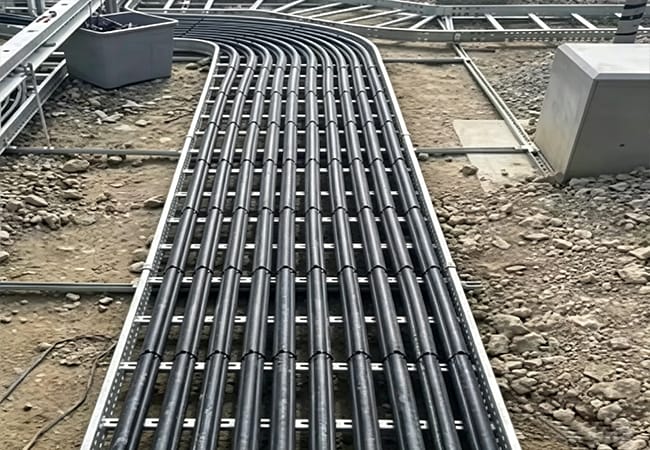

Railway Project
Heavy-duty, weather-resistant cable trays for outdoor and railway applications.

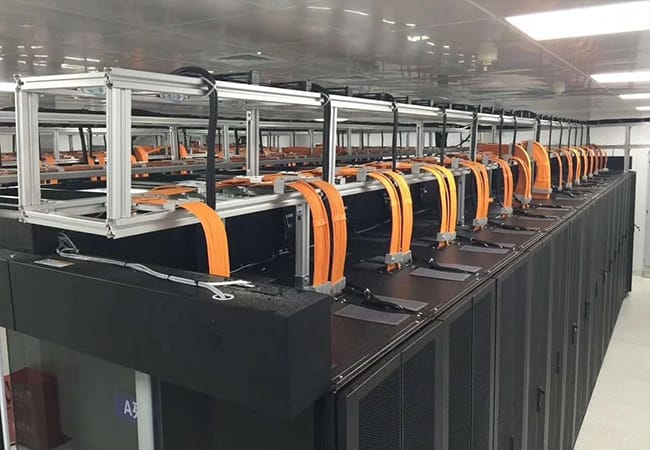

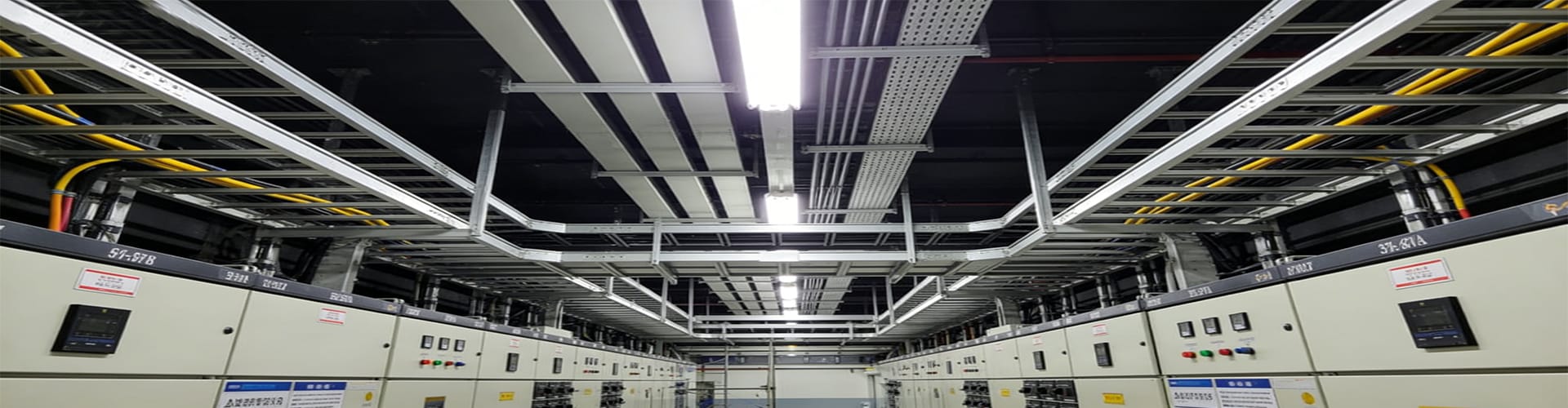

Data Center
High-density, organized cable management for data center server rooms.

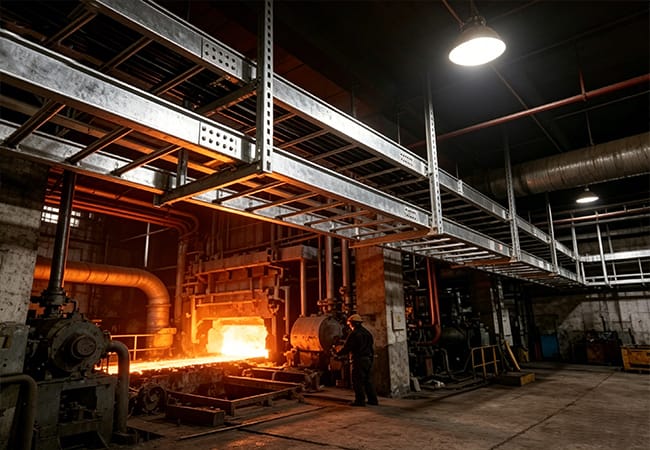

Steel Mill
Heat-resistant, rugged trays for harsh high-temperature industrial environments.
Detailed Installation Process for Ladder Cable Tray
Ladder cable tray installation must comply with standard specifications to guarantee stable load bearing, safe cable operation and tidy layout. Below is the installation process:
- Step 1: Site Preparation & Line Marking: Clear construction waste, smooth mounting surfaces, mark bracket positions with 2.0–3.0m standard support spacing.
- Step 2: Post Installation & Concrete Fixing: Drill and clean anchor holes, install level brackets within 3mm total horizontal error, fasten firmly with expansion bolts and wait for filler full curing (minimum 24h).
- Step 3: Ladder Tray Alignment: Lift trays carefully to prevent surface scratches/deformation, align pre-drilled mounting holes, reserve 2–5mm expansion gaps between tray sections, temporarily lock in position.

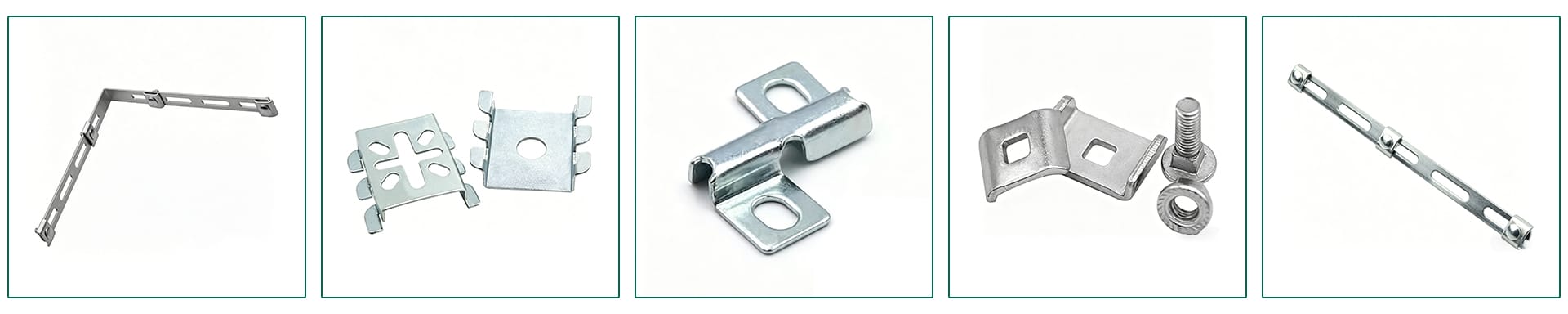

- Step 4: Security Fitting & Bolt Fastening: Match anti-rust bolts, nuts, gaskets and connecting brackets, torque bolts to 30–50N·m for even tightness at all lap joints.
- Step 5: Straightness & Stability Double-Check: Inspect tray flatness (max 2mm per meter) and bracket verticality (total ≤3mm), adjust loose or tilted components promptly.
- Step 6: Final Cleaning & Acceptance: Wipe off surface dirt with non-corrosive cleaners, fully inspect all installation indexes and rectify defective points before handover.

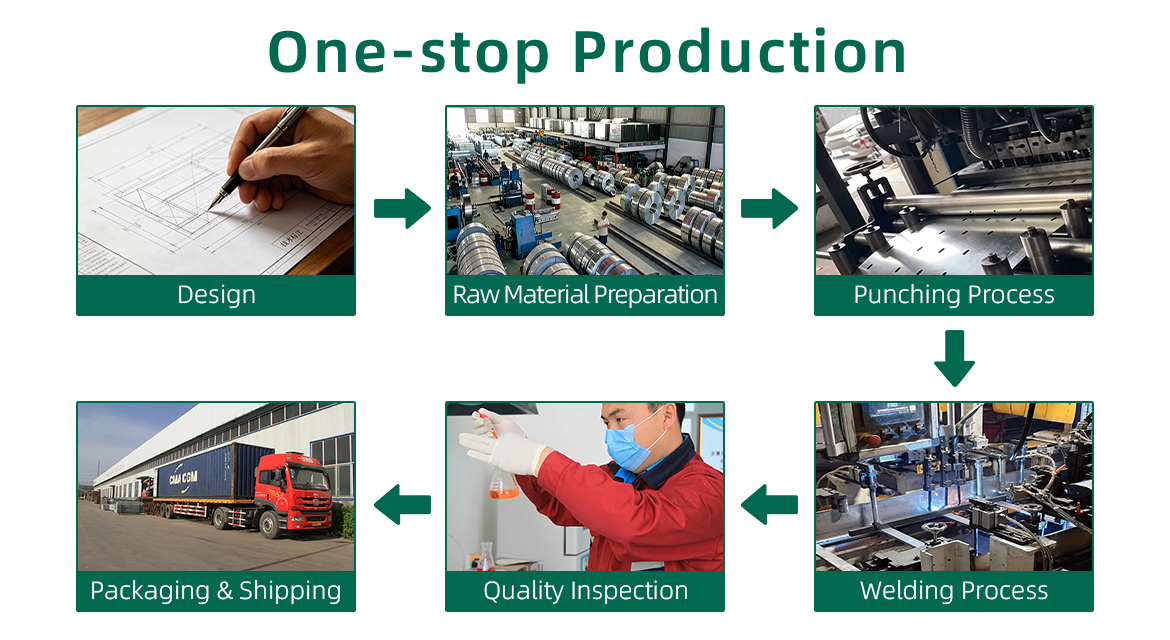

Your Trusted Partner for Ladder Cable Tray

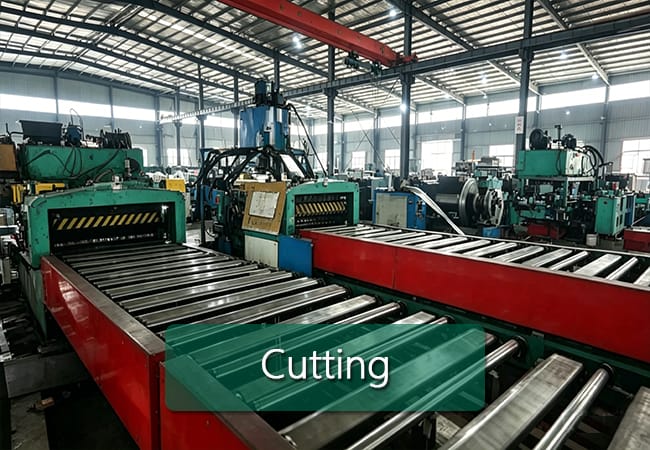

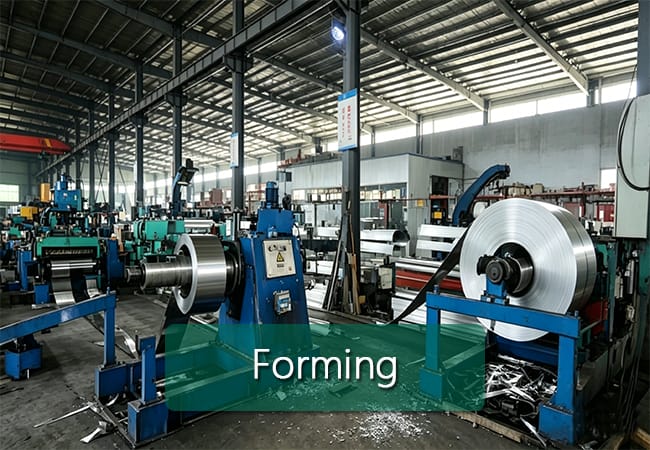

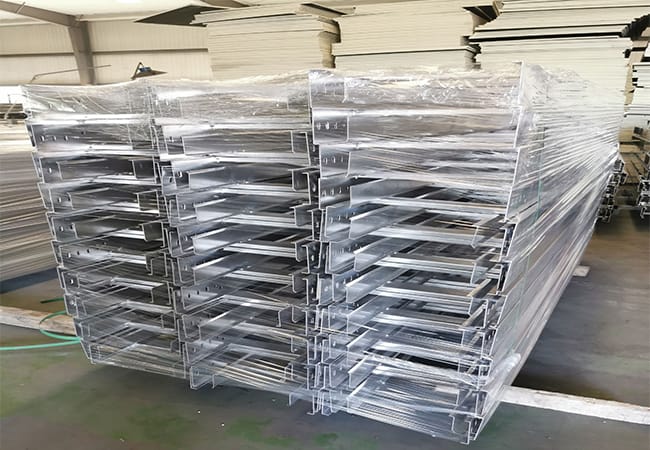

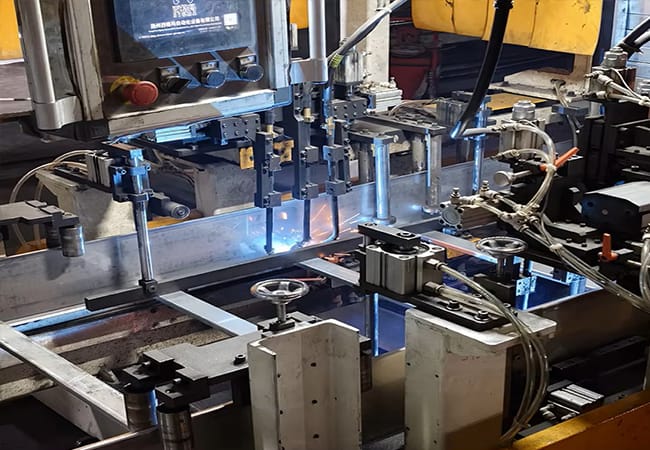

- Premium Quality: Precision rolled reinforced metal frame, rigid ladder structure, high load-bearing capacity and outstanding open heat dissipation performance.
- Durable Surface Treatments: Hot-dip galvanizing, powder coating, electrogalvanizing for powerful anti-corrosion, rust and UV resistance.
- Versatile Specifications: Height 75/100/150/200mm; Width 150–800mm; Length 2m (customizable); industrial gray color (customizable).
- Easy Installation: Modular design with matched standard support fittings, welding-free assembly to cut labor cost and construction period.
- Wide Applications: Power plants, industrial factories, data centers, subway tunnels, railways, bridges, municipal infrastructure and construction sites.
- Professional Strength: 30+ years manufacturing experience (Anping, China’s Wire Mesh Hometown), ISO-certified standardized production system.
- Global Service: Custom dimension solutions, fast delivery, professional technical guidance and complete after-sales support for worldwide buyers.
