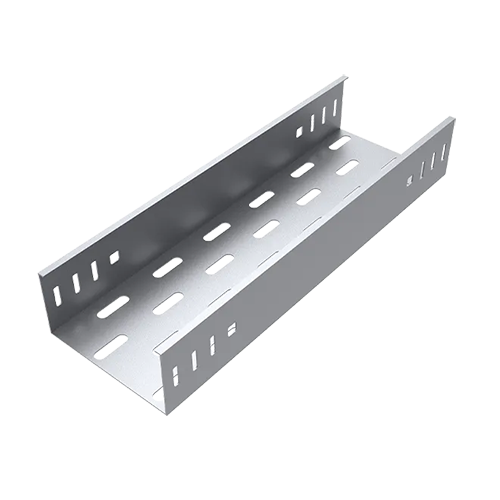

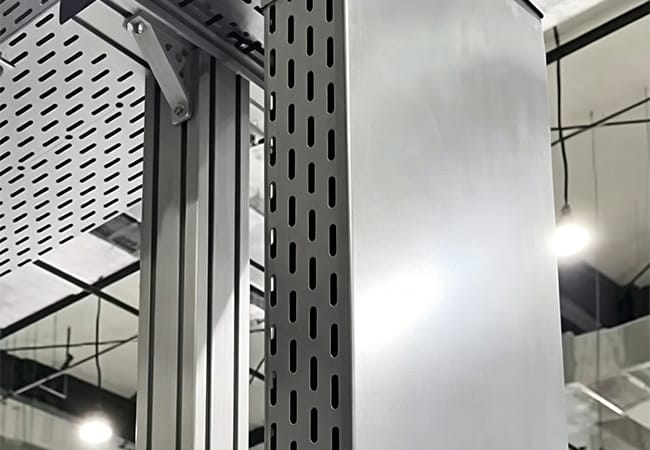

Channel Cable Tray
- Full Enclosed Protection: Complete U-shaped sealed structure provides solid shielding for cables and effective EMI interference isolation.
- Superior Load-Bearing & Stable Structure: High-quality formed steel body delivers strong rigidity, resisting deformation under heavy cable loads.
- Ultimate Corrosion Resistance: Multiple surface treatment options offer great rust, corrosion and UV resistance for long indoor and outdoor service life.
- Cost-Effective & Modular: Standard modular sections with full matching fittings enable tool-free, rapid flexible assembly to cut labor and construction time.
- Wide Application & Strong Practicability: Scalable design fits architecture, factory and multiple wiring scenes, solving common cable layout difficulties.
Product Speciffcations

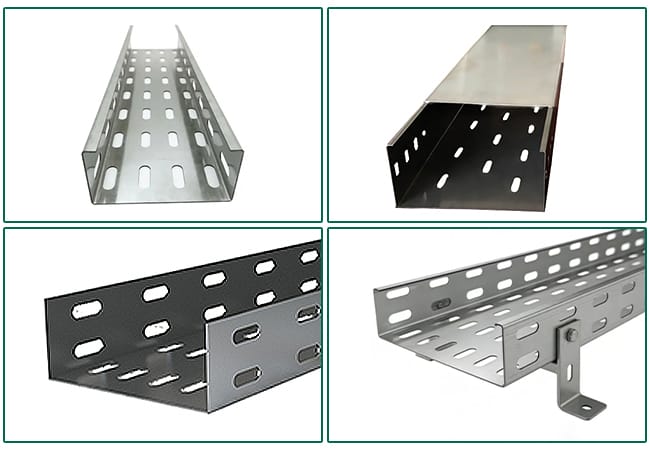

Channel Cable Tray Specifications
| Parameter | Specification |
|---|---|
| Height (mm) | 50, 75, 100, 150, 200 |
| Width (mm) | 100, 150, 200, 250, 300, 400, 500, 600, 800 |
| Length (m) | 2 (customizable) |
| Color | Industrial gray (customizable) |
| Material | Aluminum alloy, stainless steel, hot-dip galvanized steel |
| Surface Treatment | Powder coated, electrogalvanized, hot-dip galvanized |
Special Accessories

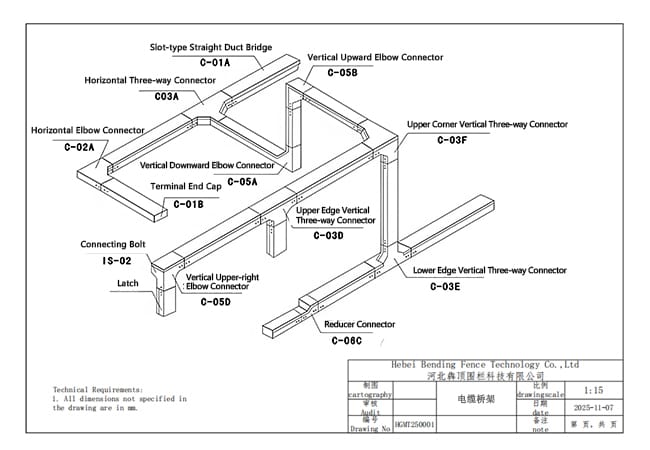

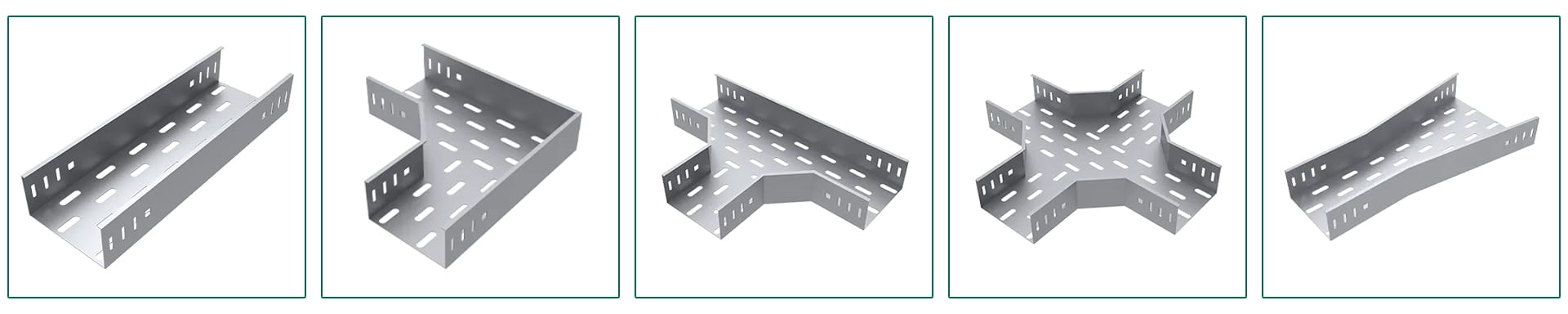

- Channel Cable Tray
- Horizontal Tee: Realizes three-way horizontal cable diversion, pre-punched holes for quick connection with straight trays.
- Horizontal 90° Elbow: Changes horizontal cable direction by 90 degrees, stable structure protects cables from sharp bending.
- Horizontal Cross: Provides four-way horizontal cable split for complex multi-branch wiring layouts.
- Vertical Up Elbow: Lifts cable routing vertically upward to adjust laying height of the tray system.
- Width Reducer: Smoothly connects cable trays of different widths to prevent cable blockage during routing.
Applications of Channel Cable Tray

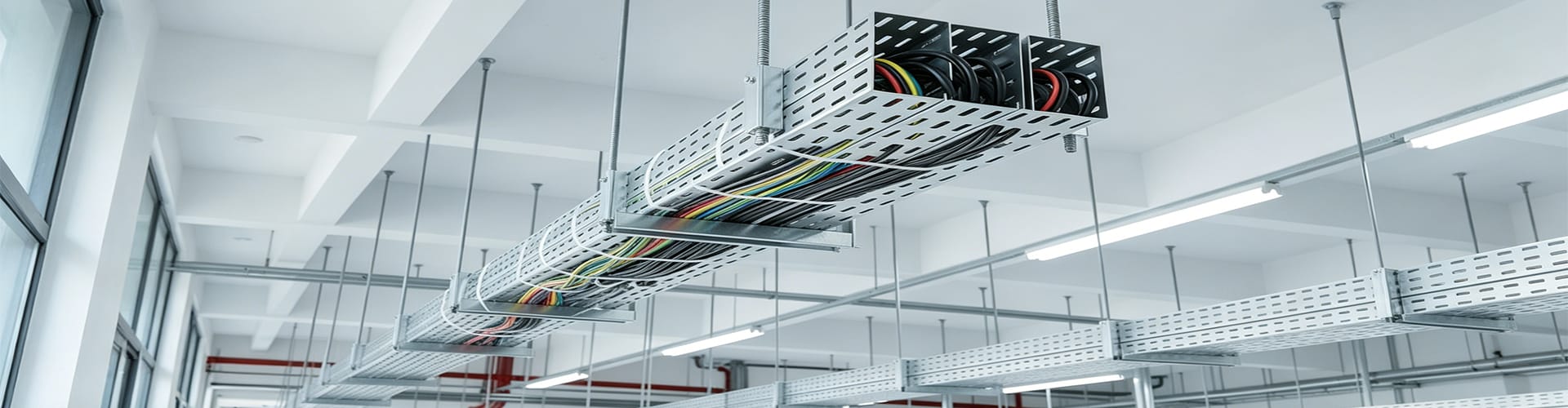

Commercial Building
Modular, high-load trays for organized wiring in office buildings.

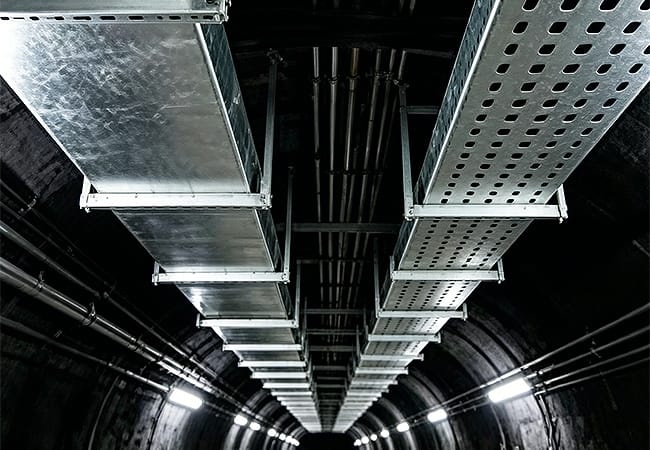

Underground Tunnel
Corrosion-resistant trays for damp, dusty tunnel environments.

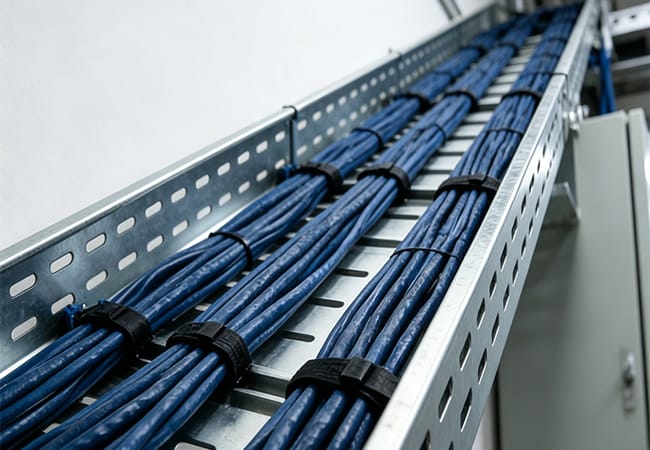

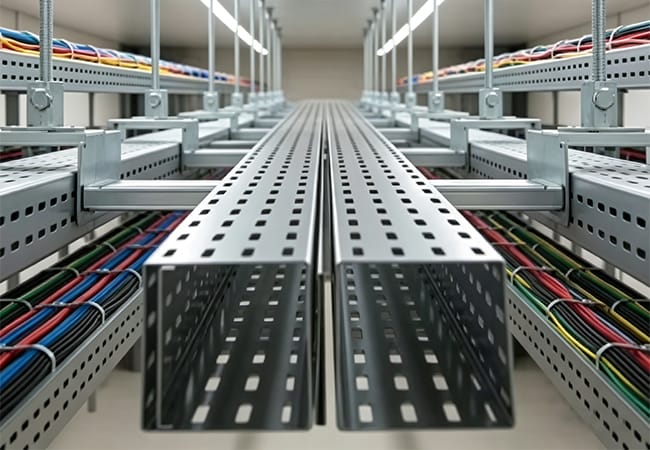

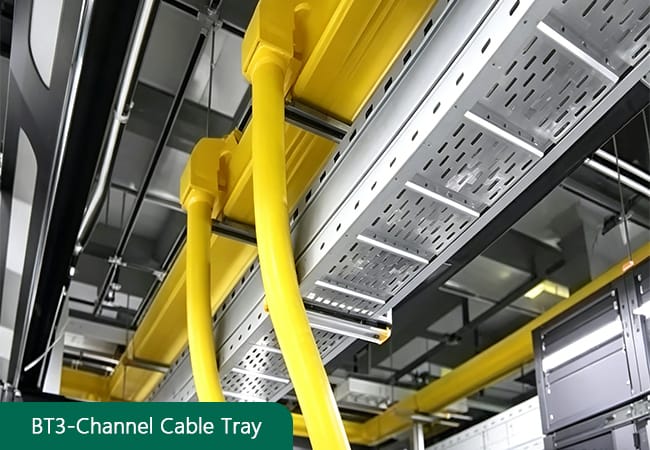

Data Center
Open-style trays for maximum airflow and easy maintenance in server rooms.
Custom Project
Custom-sized and punched trays for non-standard industrial layouts.
Detailed Installation Process for Channel Cable Tray
Channel cable tray installation needs to comply with standard specifications to guarantee stable load bearing, safe cable operation and tidy layout. Below is the installation process:
- Step 1: Site Preparation & Line Marking: Clear construction waste, smooth mounting surfaces, mark bracket positions with 2.0-3.0m standard support spacing.
- Step 2: Post Installation & Concrete Fixing: Drill and clean anchor holes, install level brackets within 3mm total horizontal error, fasten firmly with expansion bolts and wait for filler curing.
- Step 3: Channel Tray Alignment: Lift trays carefully to avoid surface scratches, align pre-drilled mounting holes, reserve 2-5mm expansion gaps between tray sections, temporarily lock in position.
- Step 4: Security Fitting & Bolt Fastening: Match anti-rust bolts, washers and connecting accessories, torque bolts to 30-50N·m for even tightness at all joints.
- Step 5: Straightness & Stability Double-Check: Inspect tray flatness (max 2mm per meter) and bracket verticality (total ≤3mm), adjust any loose or tilted components promptly.
- Step 6: Final Cleaning & Acceptance: Wipe off surface dirt with non-corrosive cleaners, fully inspect all installation indexes and fix defective points before handover.

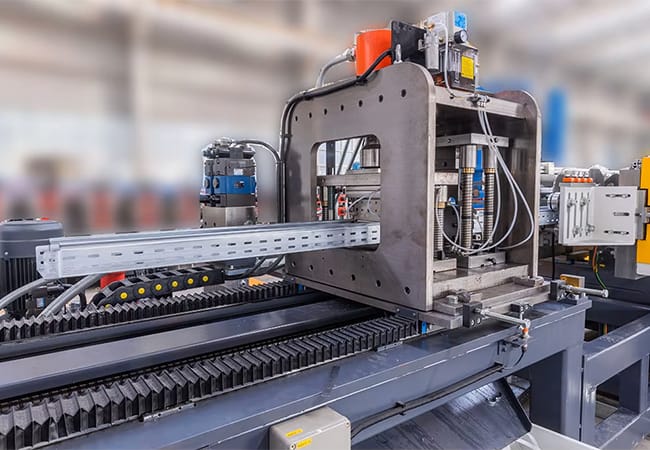

Your Trusted Partner for Channel Cable Tray

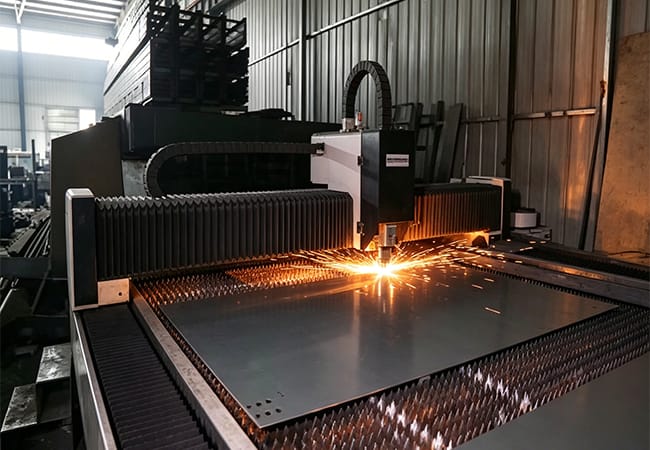

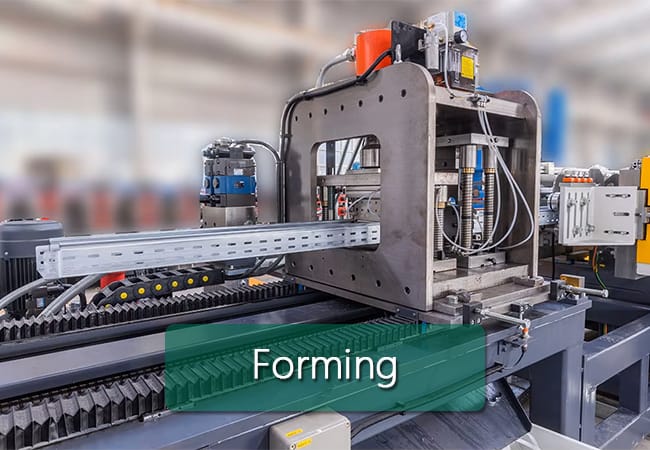

- Premium Quality: One-piece precision formed steel plate, rigid integrated channel frame, outstanding load-bearing capacity and stable cable shielding performance.

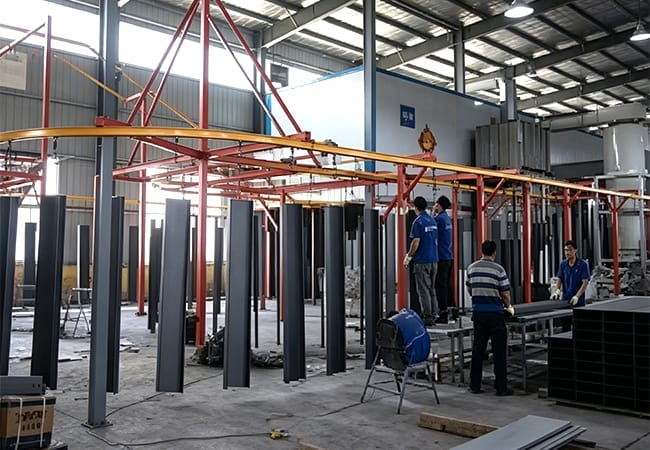

- Durable Surface Treatments: Hot-dip galvanizing, powder coating, PVC/PE coating for powerful anti-corrosion, rust and UV resistance.
- Versatile Specifications: Height 50/75/100/150/200mm; Width 100–800mm; Length 2m (customizable); industrial gray color (customizable).
- Easy Installation: Modular design with matched support fittings, welding-free assembly to cut labor cost and construction period.
- Wide Applications: Residential buildings, industrial plants, power stations, rail transit, municipal infrastructure, data centers and renovation projects.

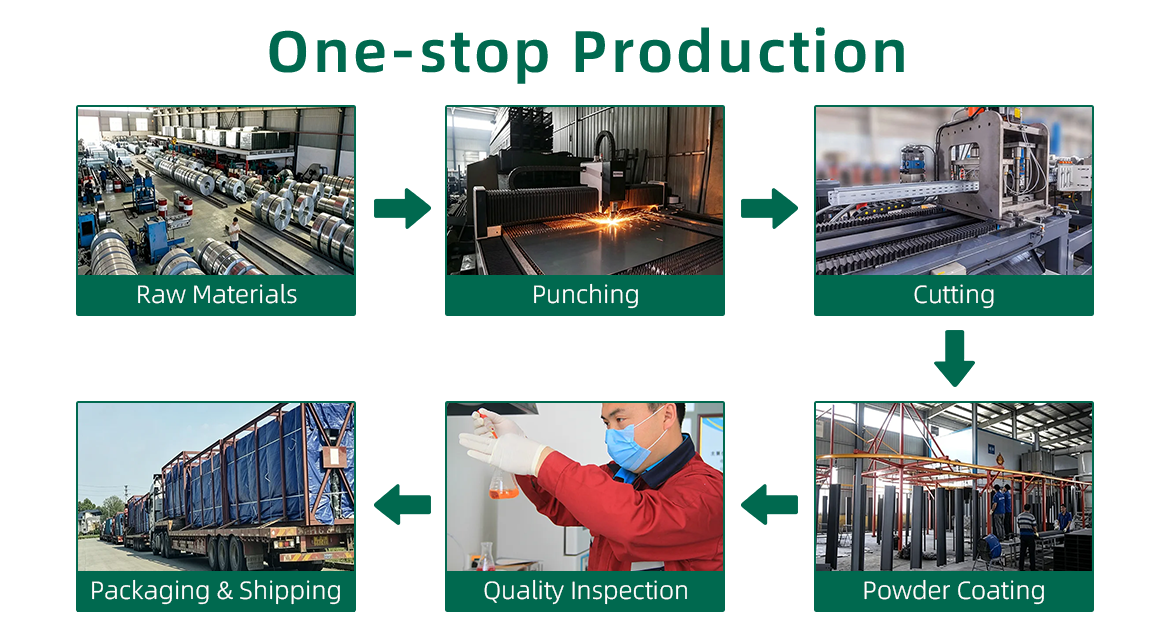

- Professional Strength: 30+ years manufacturing experience (Anping, China’s Wire Mesh Hometown), standardized ISO quality control system.
- Global Service: Custom dimension solutions, fast delivery, professional technical guidance and complete after-sales support for worldwide buyers.
