Cable Tray Fittings

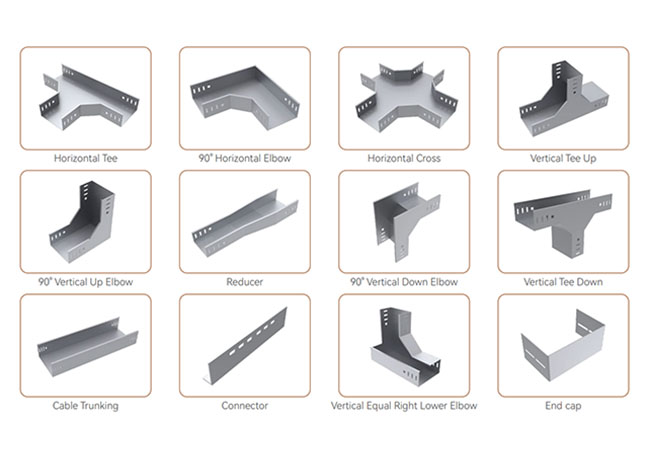

- Complete Layout Matching: Full elbows, tees, crosses and reducers for cable routing turns, branches, size transitions and end closure.
- Precise Size Compatibility: Consistent tolerances fit straight trays for seamless splicing, flush joints and tidy wiring.
- Stable Structural Connection: Bolted or snap-fit construction creates rigid joints with balanced stress under sustained cable loads.
- Superior Corrosion Resistance: Hot-dip galvanized, powder-coated or anodized finishes suit coastal, chemical and harsh outdoor industrial environments.
- Economical Modular Design: Weld-free quick installation cuts labor expenses and speeds up project delivery.
- Broad Material & Application Compatibility: Works with carbon steel, aluminum alloy and FRP trays for power plants, factories, data centers, tunnels and building works.
Special Accessories
- Wire Mesh Cable Tray
- Solid Bottom Cable Tray
- Channel Cable Tray
- Ladder Cable Tray
- FRP Cable Tray
- Adjustable Tilt Bracket: Multi-section hinged structure allows flexible adjustment of installation inclination to fit PV layout angles for various rooftops.
- Base Connecting Strip: Long strip with slotted holes enables flexible adjustment of mounting spacing and improves overall flatness of the system.
- Mid Clamp: Integral stamped multi-position design firmly clamps the joint between two adjacent PV panels, anti-slip and load-bearing.
- Adjustable Diagonal Brace with Spring Clip: Elongated slots for length fine-tuning; equipped with spring clip for quick locking to boost lateral wind resistance.
- End Clamp Assembly: Integrated bolt and dome cap kit to fasten panel edges tightly, anti-loosening and wind-resistant.

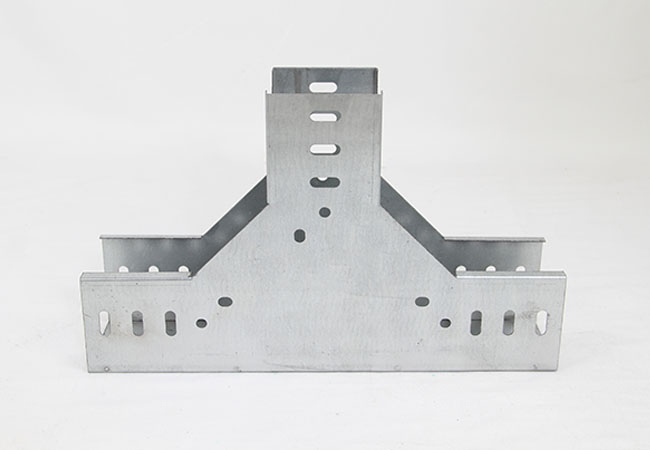

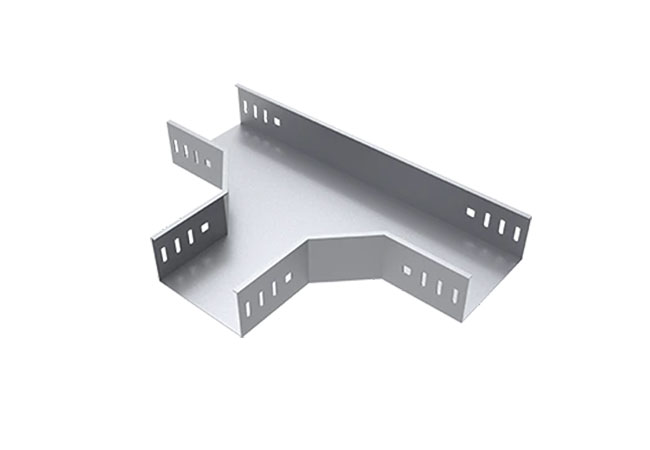

- Horizontal Tee: Realizes three-way horizontal cable diversion, pre-punched holes for quick connection with straight trays.
- Horizontal 90° Elbow: Changes horizontal cable direction by 90 degrees, stable structure protects cables from sharp bending.
- Horizontal Cross: Provides four-way horizontal cable split for complex multi-branch wiring layouts.
- Vertical Up Elbow: Lifts cable routing vertically upward to adjust laying height of the tray system.
- Width Reducer: Smoothly connects cable trays of different widths to prevent cable blockage during routing.
- Horizontal Tee: Realizes three-way horizontal cable diversion, pre-punched holes for quick connection with straight trays.
- Horizontal 90° Elbow: Changes horizontal cable direction by 90 degrees, stable structure protects cables from sharp bending.
- Horizontal Cross: Provides four-way horizontal cable split for complex multi-branch wiring layouts.
- Vertical Up Elbow: Lifts cable routing vertically upward to adjust laying height of the tray system.
- Width Reducer: Smoothly connects cable trays of different widths to prevent cable blockage during routing.
- Adjustable Wall Bracket: Multi-slotted long arm design, flexible height adjustment for wall-mounted tray installation, solid galvanized steel for stable load bearing.
- Quick Connect Clamp Set: Snap-on interlocking clips, no extra drilling required, fast assembly to link tray sections firmly.
- Cross Connection Bracket: Dual-base mounting structure, used for cross-joint fixation between trays and supports, uniform stress distribution.

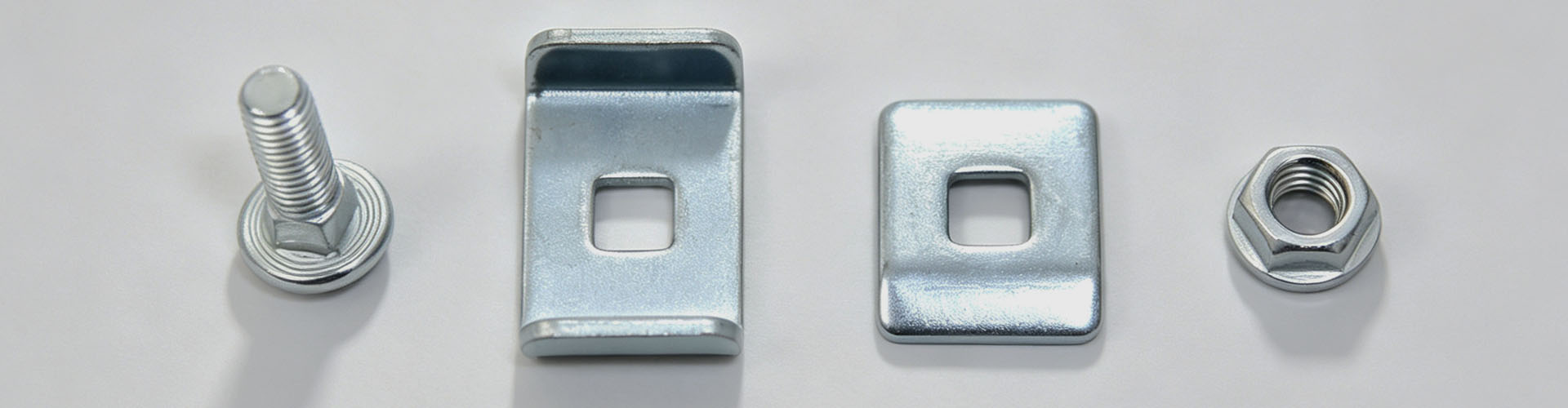

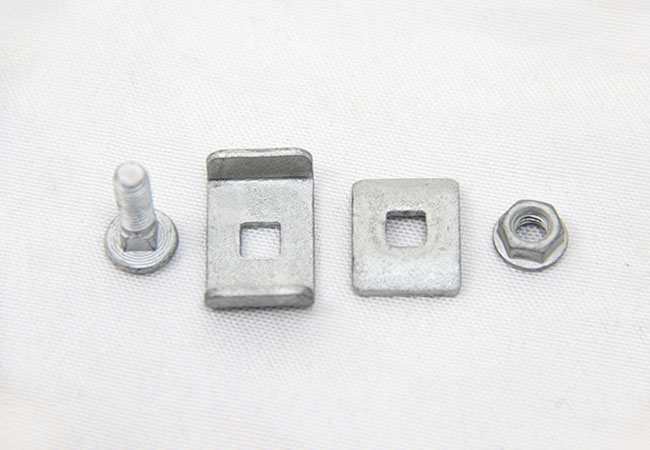

- Angle Fastener with Bolt Kit: Matched bolt, nut and gasket accessories, secures tray corners and connections tightly with anti-loosening effect.
- Adjustable Suspension Hanger: Slotted long strip suspender, customizable hanging length for ceiling overhead cable tray mounting.
- Width Reducer: Smoothly connects FRP trays of different widths, gentle transition prevents cable extrusion and damage, integrated FRP molded for consistent corrosion resistance.
- Horizontal 90° Elbow: Changes horizontal cable direction by 90°, uniform wall thickness maintains structural strength and acid-alkali resistance.
- Vertical Up Elbow: Adjusts cable routing upward vertically, reinforced support rib avoids deformation under cable load.
- Horizontal Tee: Achieves three-way horizontal cable branching, pre-drilled bolt holes for seamless splicing with straight tray sections.
- Horizontal Cross: Realizes four-way horizontal cable distribution for complex multi-branch wiring layouts.
Accessories Categories

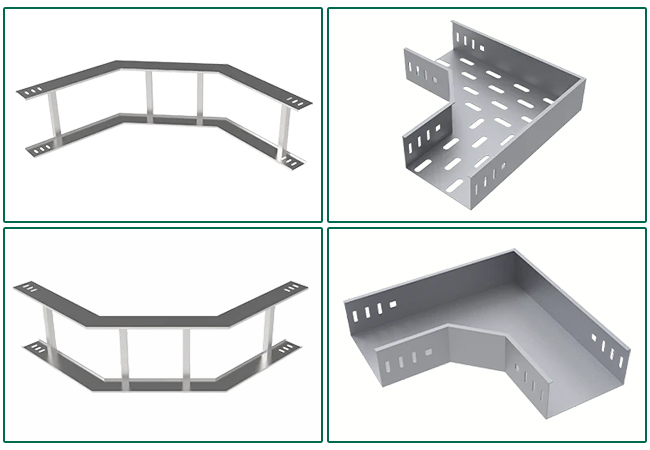

Horizontal & Vertical Elbows
Multi-angle elbows for multiple cable trays.

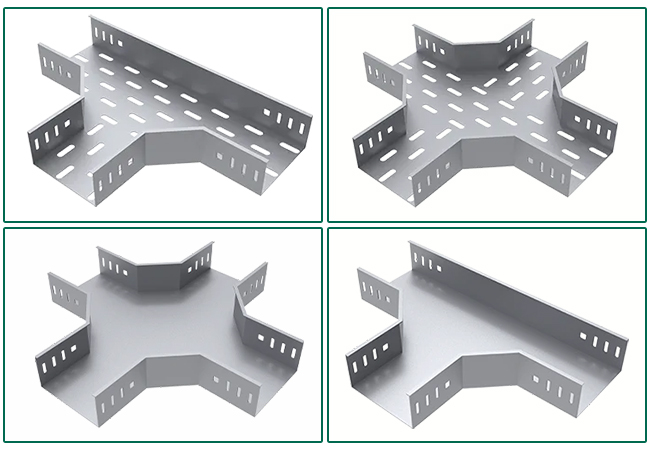

Tees & Cross Junctions
Standard tees, crosses and reducing tees fit all main cable trays for cable branching.

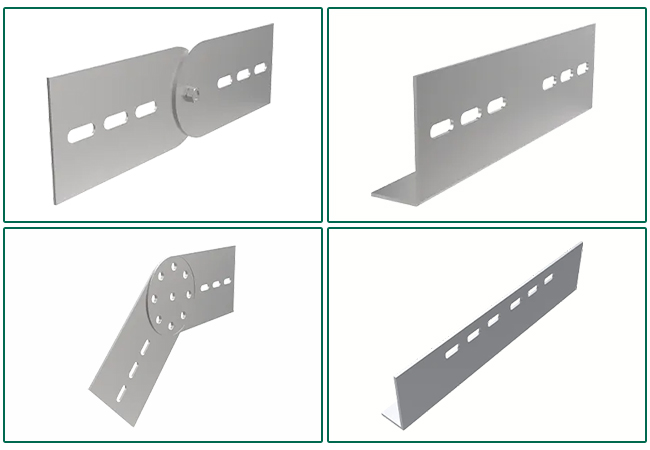

Connection
Splice plates, connectors and adapters join cable trays stably without squeezing cables.

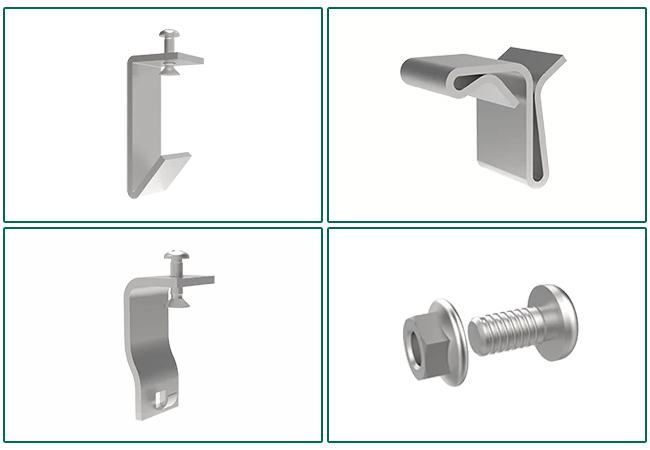

Fixing Hardware & Small Accessories
Tiny essential parts to lock trays, separate wires and fix the whole wiring system firmly.
Detailed Installation Process for Cable Tray Fittings
Cable tray fittings (elbows, tees, crosses, reducers etc.) installation must comply with standard specifications to guarantee stable load bearing, safe cable routing transition and neat overall layout. Below is the installation process:
- Step 1: Site Preparation & Line Marking: Clear construction waste, smooth mounting surfaces, mark bracket positions with 2.0–3.0m standard support spacing, confirm positioning for turning, branching and size transition points of fittings.
- Step 2: Post Installation & Concrete Fixing: Drill and clean anchor holes, install level brackets within 3mm total horizontal error, fasten firmly with expansion bolts and wait for filler full curing (minimum 24h).
- Step 3: Fitting Alignment & Gap Reservation: Lift fittings carefully to prevent surface scratches/deformation, align pre-drilled mounting holes with adjacent straight trays, reserve 2–5mm expansion gaps between fitting and tray sections, temporarily lock in position.
- Step 4: Connection Fitting & Bolt Fastening: Match anti-rust bolts, nuts, gaskets and connecting plates, torque bolts to 30–50N·m for even tightness at all lap joints between fittings and straight trays.
- Step 5: Straightness & Stability Double-Check: Inspect fitting flatness (max 2mm per meter) and bracket verticality (total ≤3mm), adjust loose or tilted components at transition joints promptly.
- Step 6: Final Cleaning & Acceptance: Wipe off surface dirt with non-corrosive cleaners, fully inspect all connection and installation indexes, rectify defective joints before handover.
Your Trusted Partner for BDCABLETRAY
- Premium Quality: Precision rolled reinforced metal frame, rigid ladder structure, high load-bearing capacity and outstanding open heat dissipation performance.
- Durable Surface Treatments: Hot-dip galvanizing, powder coating, electrogalvanizing for powerful anti-corrosion, rust and UV resistance.
- Versatile Specifications: Height 75/100/150/200mm; Width 150–800mm; Length 2m (customizable); industrial gray color (customizable).
- Easy Installation: Modular design with matched standard support fittings, welding-free assembly to cut labor cost and construction period.
- Wide Applications: Power plants, industrial factories, data centers, subway tunnels, railways, bridges, municipal infrastructure and construction sites.
- Professional Strength: 30+ years manufacturing experience (Anping, China’s Wire Mesh Hometown), ISO-certified standardized production system.
- Global Service: Custom dimension solutions, fast delivery, professional technical guidance and complete after-sales support for worldwide buyers.
