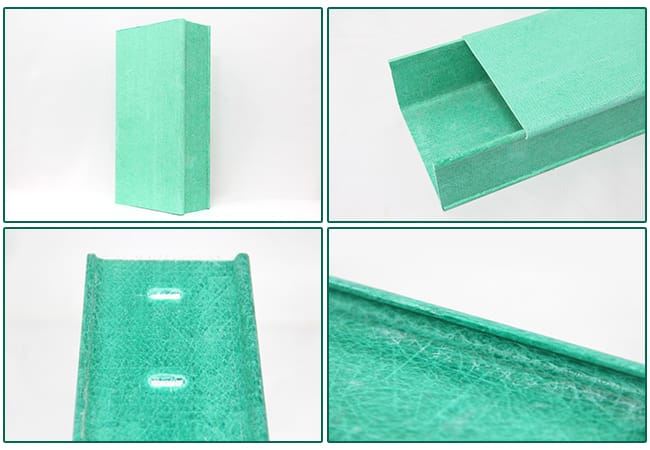

FRP Cable Tray
- High Insulation & Flame Retardant Safety: Integral FRP composite structure delivers reliable electrical insulation and strong flame retardant performance for circuit safety.
- Superior Structural Durability: Compact one-piece molded fiberglass-resin frame, rigid load-bearing performance to stop sagging and deformation under cable weight.
- Ultimate Chemical & Weather Resistance: Acid, alkali, moisture and aging resistant, perfectly suited for chemical plants, coastal and other harsh corrosive environments.
- Cost-Effective & Modular: Standard modular trough sections and matching brackets allow fast hot-work-free assembly, cutting labor expenses and construction schedules.
Product Speciffcations
FRP Cable Tray Specifications
| Parameter | Specification |
|---|---|
| Height (mm) | 75, 100, 150, 200 |
| Width (mm) | 150, 200, 250, 300, 400, 500, 600, 800 |
| Length (m) | 2 (customizable) |
| Color | Industrial gray (customizable) |
| Material | FRP, glass fiber composite |
| Surface Finish | Gel coat finish, UV resistant available |

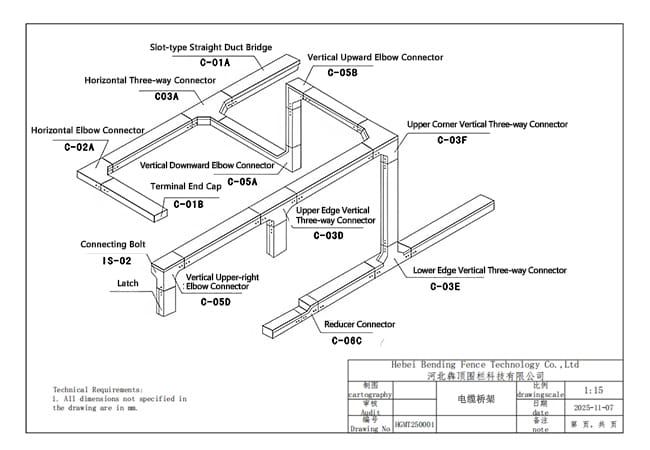

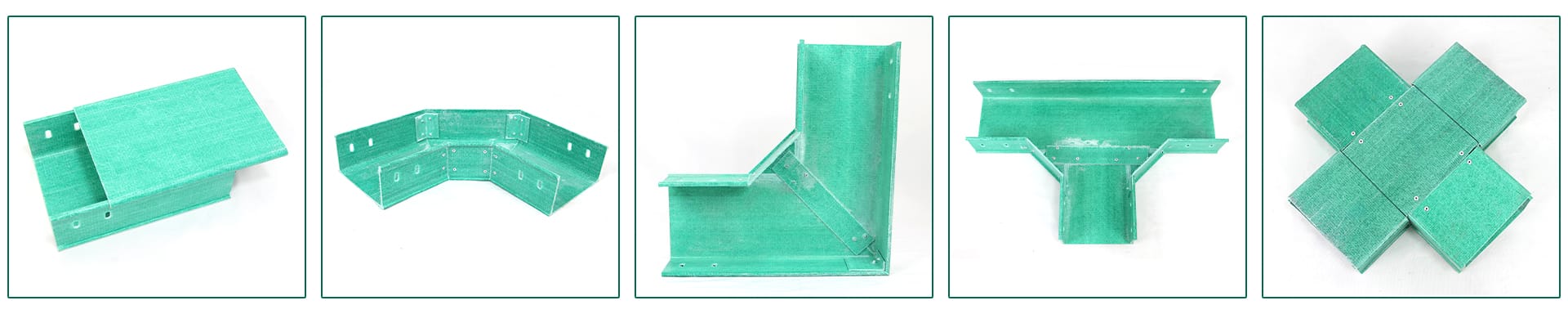

Special Accessories

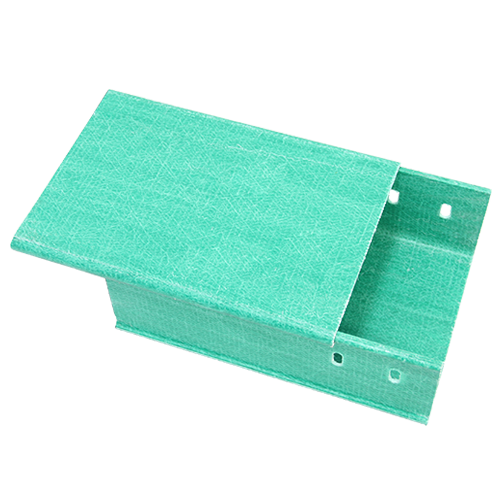

- FRP Cable Tray
- Width Reducer: Smoothly connects FRP trays of different widths, gentle transition prevents cable extrusion and damage, integrated FRP molded for consistent corrosion resistance.
- Horizontal 90° Elbow: Changes horizontal cable direction by 90°, uniform wall thickness maintains structural strength and acid-alkali resistance.
- Vertical Up Elbow: Adjusts cable routing upward vertically, reinforced support rib avoids deformation under cable load.
- Horizontal Tee: Achieves three-way horizontal cable branching, pre-drilled bolt holes for seamless splicing with straight tray sections.
- Horizontal Cross: Realizes four-way horizontal cable distribution for complex multi-branch wiring layouts.
Applications of FRP Cable Tray

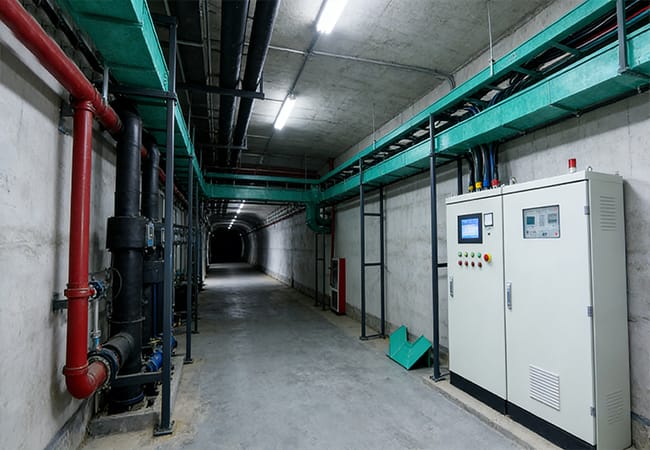

Residential Utility Corridor
Safe, durable cable trays for residential underground corridors.

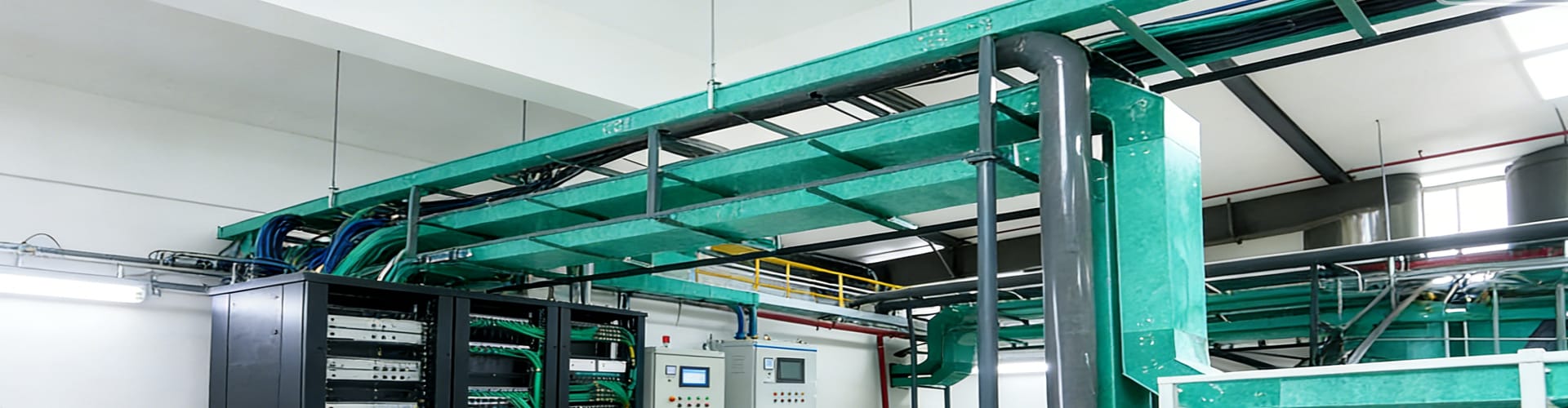

Factory & Workshop
High-strength, anti-corrosion solutions for industrial facilities.

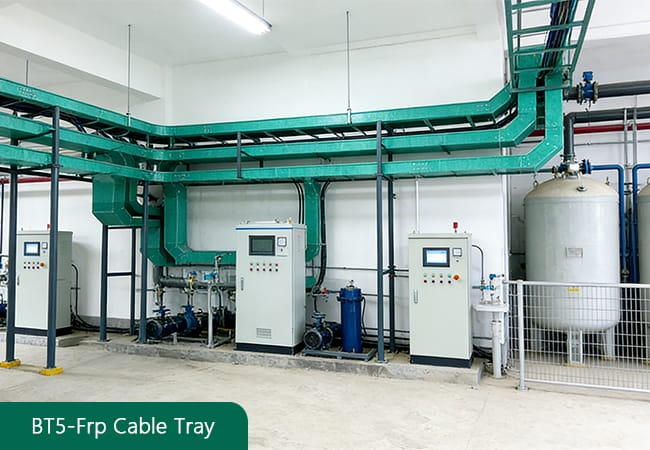

Water Treatment Pump Room
Moisture-proof, rust-resistant trays for pump houses.

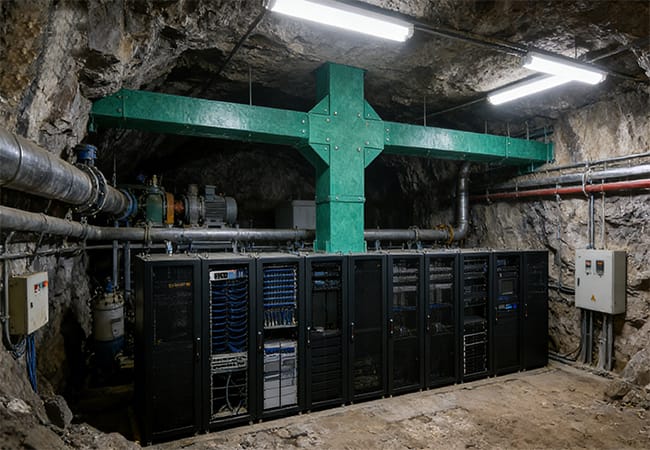

Underground Mine/Tunnel
Rugged, impact-resistant trays for harsh underground environments.
Detailed Installation Procedure of FRP Cable Tray
FRP cable tray installation must comply with strict operation standards to guarantee structural stability, anti-corrosion performance, insulation safety and tidy wiring layout.
- Step 1: Site Preparation & Line Marking: Clear construction waste, level base surfaces, mark bracket positions with standard 2–3m support span.
- Step 2: Post Installation & Concrete Fixing: Drill matching anchor holes, install calibrated level brackets (≤3mm total horizontal error), fasten with expansion bolts and wait minimum 24h filler curing.
- Step 3: FRP Tray Alignment: Lift trays carefully to prevent gel coat scratches, align pre-drilled mounting holes, reserve 2–5mm thermal expansion gaps between sections, temporarily lock in position.
- Step 4: Special Accessory & Bolt Fastening: Use matched anti-loosening hardware, torque bolts to 30–50N·m evenly; reinforce joints and elbows with dedicated connecting pieces.
- Step 5: Straightness & Stability Double-Check: Verify tray flatness (max 2mm per meter) and bracket verticality (total ≤3mm); adjust loose, tilted or uneven components timely.
- Step 6: Final Cleaning & Acceptance: Wipe surfaces with non-corrosive cleaners, full inspection of installation indexes, rectify defects until qualified for handover.
Your Trusted Partner for FRP Cable Tray
- Premium Quality: Integral molded fiberglass composite, rigid one-piece structure, outstanding load-bearing, electrical insulation and acid-alkali corrosion resistance.
- Durable Surface Treatments: Gel coat finish with optional UV resistant layer for powerful anti-aging, weather and chemical corrosion performance.
- Versatile Specifications: Height 75/100/150/200mm; Width 150–800mm; Length 2m (customizable); industrial gray color (customizable).
- Easy Installation: Modular trough design with matched standard support brackets, welding-free assembly to cut labor cost and construction period.
- Wide Applications: Chemical plants, power stations, coastal projects, municipal infrastructure, data centers, pharmaceutical and petrochemical industries.

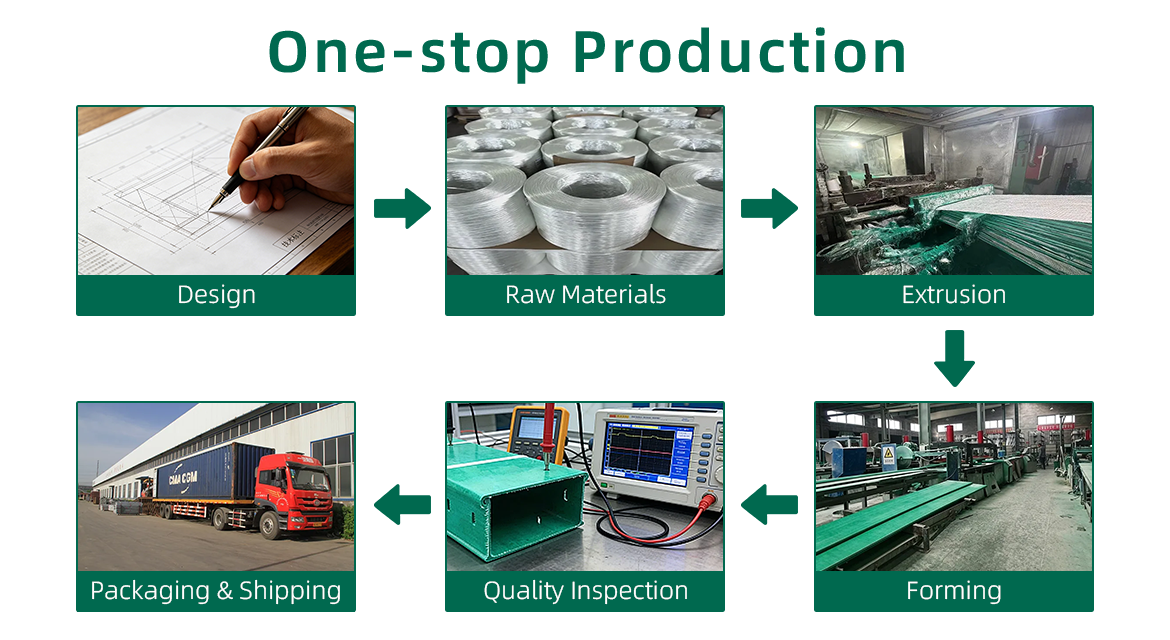

- Professional Strength: 30+ years manufacturing experience (Anping, China’s Wire Mesh Hometown), standardized ISO quality control system.
- Global Service: Custom dimension & structure solutions, fast delivery, professional technical guidance and complete after-sales support for worldwide buyers.
