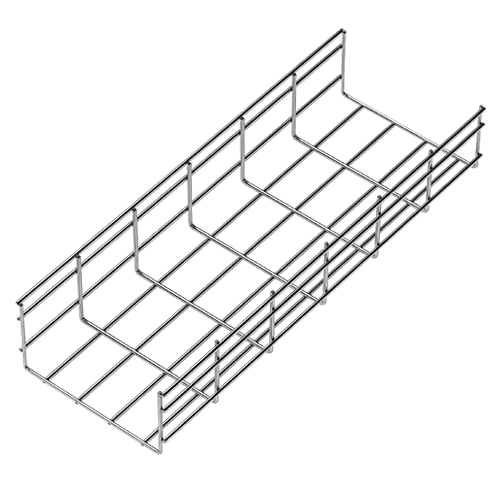

Wire Mesh Cable Tray
- High Load Rigidity & Cable Protection: Constructed from premium low-carbon steel wire with solid welded joints, it boasts strong load-bearing rigidity and reliable cable protection, paired with a sleek industrial aesthetic.
- Efficient Heat Dissipation: The hollow open-grid structure optimizes heat dispersion and avoids heat buildup inside cables.
- Superior Anti-Corrosion & Weather Resistance: Available in hot-dip galvanized, powder coated, PVC or PE coated finishes; it resists rust, corrosion and UV rays perfectly for harsh indoor and outdoor engineering conditions.
- Fast Modular Installation: Modular grid panels and standard support brackets allow quick welding-free on-site assembly, cutting labor expenses and construction cycles.
- Lightweight & Cost-Effective: Practical, light-weight and economical, widely applied in data centers, factories, warehouses, office buildings, hotels, malls, highways, rail transit and construction sites for cable routing, management and protection.
Product Speciffcations

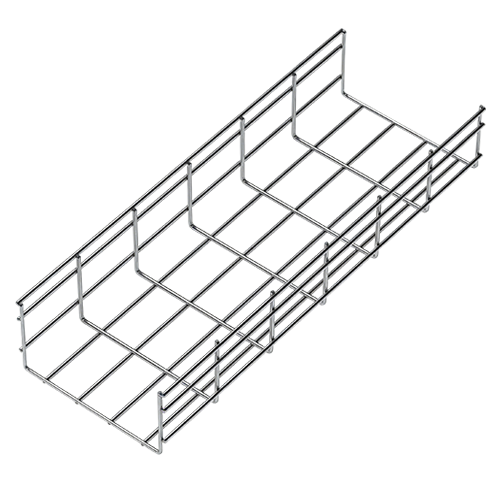

Wire Mesh Cable Tray Specifications
| Parameter | Standard Specifications |
|---|---|
| Height | 50mm / 100mm / 150mm |
| Width | 50mm / 100mm / 150mm / 200mm / 300mm / 400mm / 450mm / 500mm / 600mm |
| Length | 3.0 m |
| Wire Diameter | 3.5–6mm; common size: 5mm |
| Material | Galvanized steel, stainless steel |
| Surface Treatment | Powder coated, electrogalvanized, hot-dip galvanized, pre-galvanized |
Special Accessories
- Wire Mesh Cable Tray
- Adjustable Tilt Bracket: Multi-section hinged structure allows flexible adjustment of installation inclination to fit PV layout angles for various rooftops.
- Base Connecting Strip: Long strip with slotted holes enables flexible adjustment of mounting spacing and improves overall flatness of the system.
- Mid Clamp: Integral stamped multi-position design firmly clamps the joint between two adjacent PV panels, anti-slip and load-bearing.
- Adjustable Diagonal Brace with Spring Clip: Elongated slots for length fine-tuning; equipped with spring clip for quick locking to boost lateral wind resistance.
- End Clamp Assembly: Integrated bolt and dome cap kit to fasten panel edges tightly, anti-loosening and wind-resistant.
Applications of Wire Mesh Cable Tray

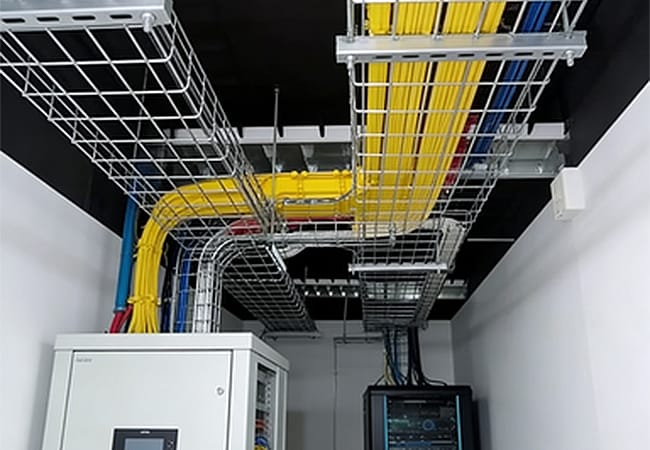

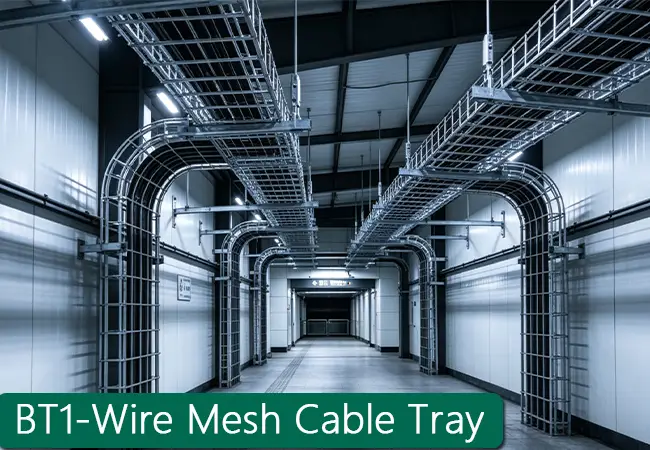

Data Center Server Room
Open-grid design maximizes airflow and heat dissipation, ideal for organizing high-density power and data cables in data centers.
Structured Cabling Infrastructure
Flexible modular structure supports easy routing of multi-color cables, enabling clear cable identification and efficient network management.

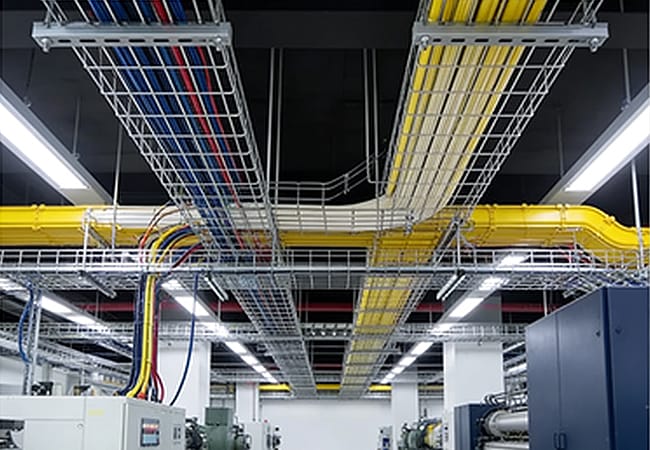

Server Room with Power Cables
Lightweight yet sturdy trays provide reliable support for heavy power cables, while simplifying future maintenance and expansion.
Large-Scale IT Infrastructure
Versatile wire mesh trays adapt to complex layouts, offering quick installation and full visibility for cable inspection in large IT environments.
Detailed Installation Process for Wire Mesh Cable Tray
Wire mesh cable tray installation requires strict compliance with operational standards and detailed steps to ensure load-bearing stability, wiring safety and neat layout. Below is the installation process:
- Step 1: Site Preparation & Line Marking: Clear construction debris, level mounting surfaces, and mark bracket positions with standard 1.5-2m support spacing.
- Step 2: Support Bracket Installation & Concrete Fixing: Drill and clean anchor holes, install brackets horizontally within 3mm level error, fasten firmly with expansion bolts.
- Step 3: Wire Mesh Cable Tray Alignment: Lift and position trays, align pre-drilled mounting holes, reserve 2-5mm expansion gaps between tray sections, temporarily lock in place.
- Step 4: Secure Clamp & Bolt Fastening: Match anti-rust hardware, torque bolts to 30-50N·m, connect adjacent trays with joint plates for even stress distribution.
- Step 5: Straightness & Stability Double-Check: Inspect tray levelness (max 2mm per meter) and bracket verticality (total ≤3mm), adjust any loose or tilted components.
- Step 6: Final Site Cleaning & Acceptance: Wipe off surface dirt without corrosive cleaners, fully inspect all installation standards and rectify defective points before handover.
Your Trusted Partner for Wire Mesh Cable Tray
- Premium Quality: Precision-welded low-carbon steel, firm joints, excellent load-bearing & heat dissipation performance.
- Durable Surface Treatments: Hot-dip galvanizing, powder coating, PVC/PE coating for strong anti-corrosion & UV resistance.
- Versatile Specifications: Height 50/100/150mm; Width 50-600mm; Length 3.0m; Wire diameter 3.5-6mm (common 5mm).
- Easy Installation: Modular design with standard brackets, welding-free assembly to save labor & construction time.
- Wide Applications: Data centers, factories, office buildings, rail transit, municipal infrastructure & more.
- Professional Strength: 30+ years manufacturing experience (Anping, China’s Wire Mesh Hometown), ISO-certified production.
- Global Service: Custom solutions, timely delivery, technical support & after-sales service for international clients.
