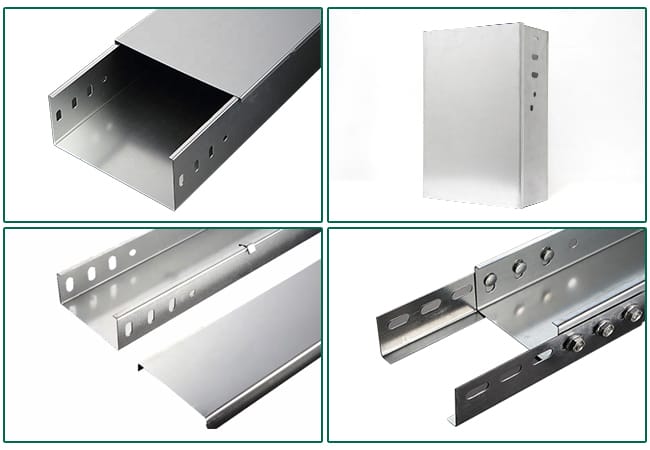

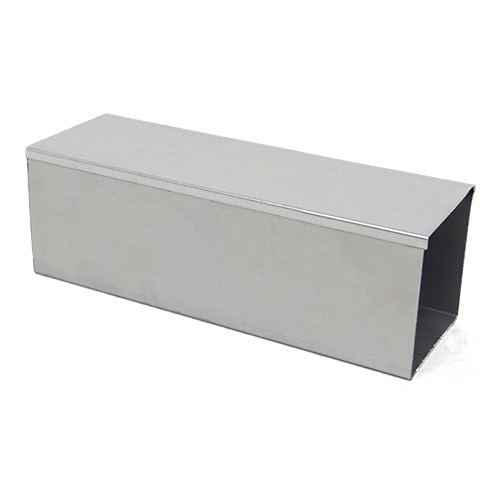

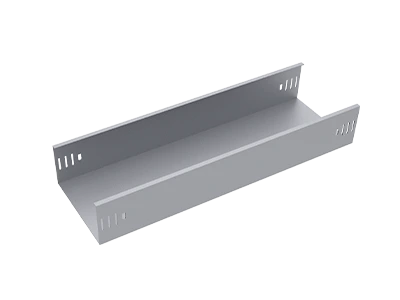

Solid Bottom Cable Tray
- High Load-Bearing & Dust Proof: Integrated solid base plate delivers strong structural stability, reliable cable shielding and great dust blocking capacity.
- Superior Durability: Premium galvanized steel or aluminum alloy formed by precise molding, anti-deformation even under heavy loads.
- Strong Anti-Corrosion & Wide Adaptability: Great rust resistance and scratch-free protection, ideal for factories, commercial buildings, tunnels and harsh working conditions.
- Cost-Effective & Modular: Standard modular panels and matched support fittings enable quick easy installation, cutting labor expenses and construction periods.
Product Speciffcations
Solid Bottom Cable Tray Specifications
| Parameter | Standard Specifications |
|---|---|
| Height (mm) | 50, 75, 100, 150, 200 |
| Width (mm) | 100, 150, 200, 250, 300, 400, 500, 600, 800 |
| Length (m) | 2 (customizable) |
| Color | Industrial gray (customizable) |
| Material | Aluminum alloy, stainless steel, hot-dip galvanized steel |
| Surface Treatment | Powder coated, electrogalvanized, hot-dip galvanized |

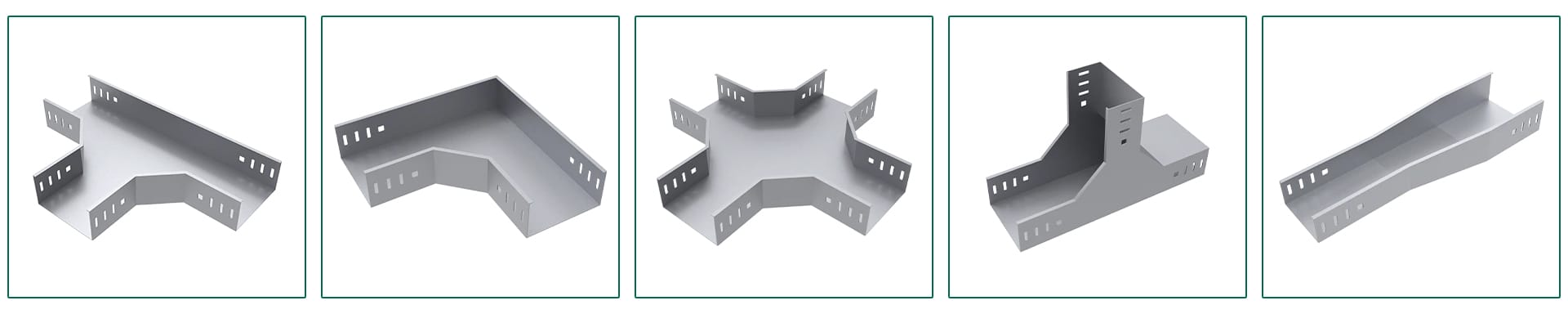

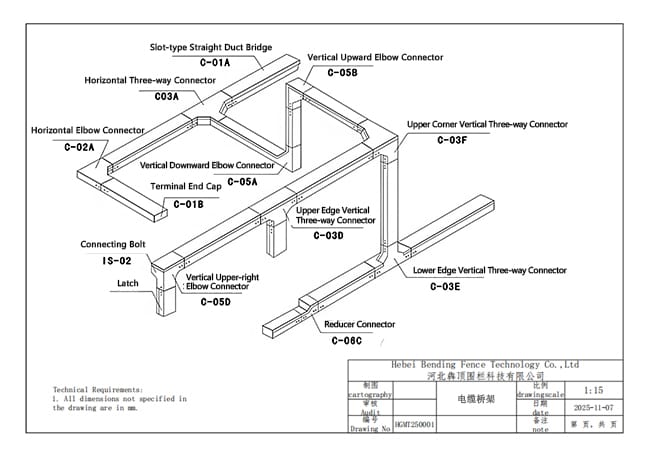

Special Accessories
- Solid Bottom Cable Tray
- Horizontal Tee: Realizes three-way horizontal cable diversion, pre-punched holes for quick connection with straight trays.
- Horizontal 90° Elbow: Changes horizontal cable direction by 90 degrees, stable structure protects cables from sharp bending.
- Horizontal Cross: Provides four-way horizontal cable split for complex multi-branch wiring layouts.
- Vertical Up Elbow: Lifts cable routing vertically upward to adjust laying height of the tray system.
- Width Reducer: Smoothly connects cable trays of different widths to prevent cable blockage during routing.

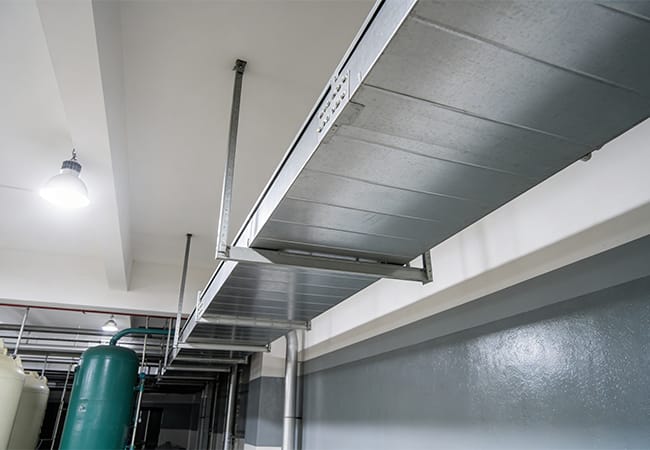

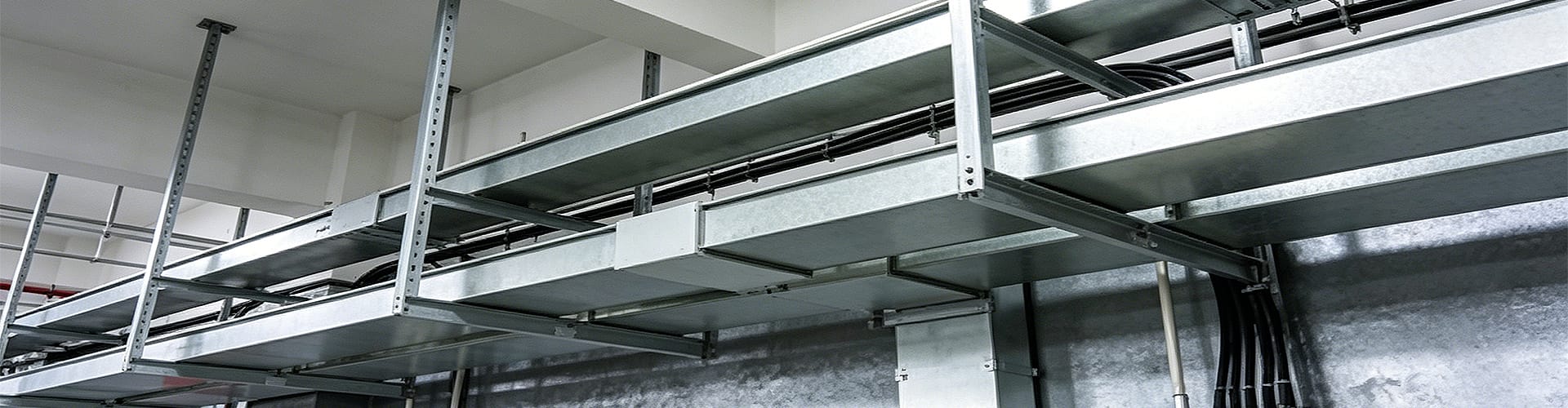

Applications of Solid Bottom Cable Tray

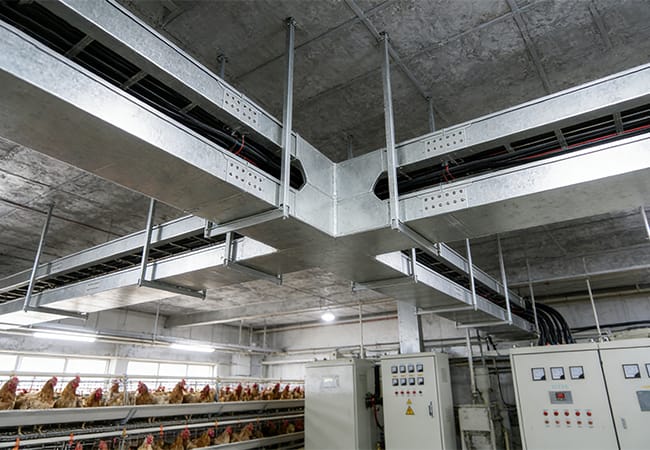

Agricultural Facility
Fully enclosed solid trays fully protect cables from dust, moisture and debris, ideal for agricultural use.
Industrial Plant / Factory
Hot-dip galvanized solid trays with excellent corrosion resistance, perfect for factory floors and industrial-grade wiring projects.

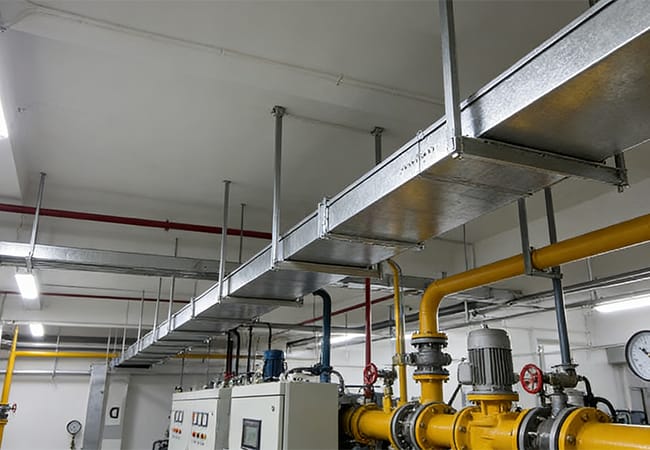

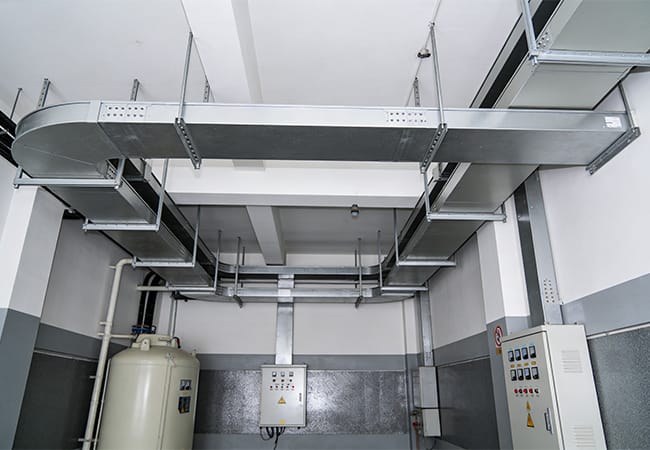

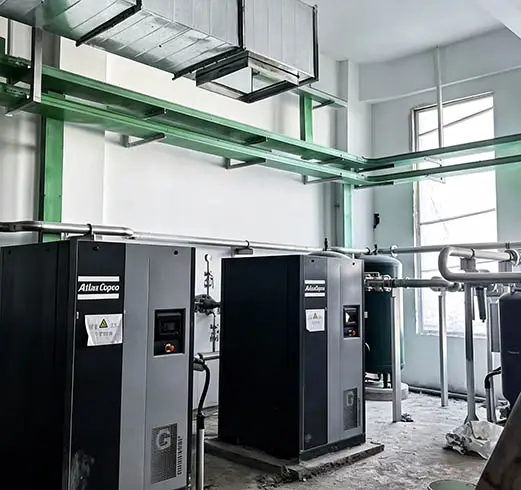

Mechanical & Electrical Room
Sealed solid structure prevents dust and liquid from entering, offering reliable cable protection for mechanical and electrical equipment rooms.

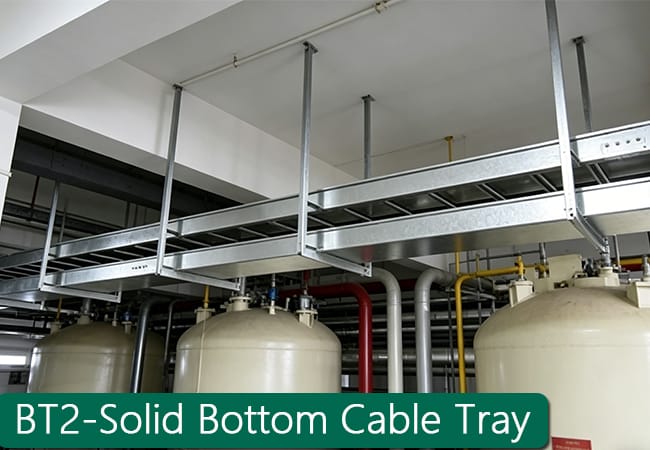

Chemical Plant
Heavy-duty solid bottom trays with anti-corrosion performance, designed for harsh environments in chemical and process industries.
Detailed Installation Process for Solid Bottom Cable Tray
Solid bottom cable tray installation must follow standard procedures to guarantee load stability, wiring safety and tidy layout. Below is the installation process:
- Step 1: Site Preparation & Line Marking: Clear construction waste, level mounting surfaces, mark bracket positions with 1.5-2m standard support spacing.
- Step 2: Support Bracket Installation & Concrete Fixing: Drill and clean anchor holes, mount horizontal brackets within 3mm level error, fasten tightly with expansion bolts.
- Step 3: Solid Tray Alignment: Lift and position trays, align pre-drilled mounting holes, reserve 2-5mm expansion gaps between tray sections, temporarily secure in place.
- Step 4: Secure Fitting & Bolt Fastening: Match anti-rust bolts, washers and connecting plates, torque bolts to 30-50N·m for uniform tightness.
- Step 5: Straightness & Stability Double-Check: Inspect tray levelness (max 2mm per meter) and bracket verticality (total ≤3mm), adjust loose or tilted components.
- Step 6: Final Site Cleaning & Acceptance: Wipe off surface dirt with non-corrosive cleaners, fully inspect all installation standards and fix defective points before handover.
Your Trusted Partner for Solid Bottom Cable Tray

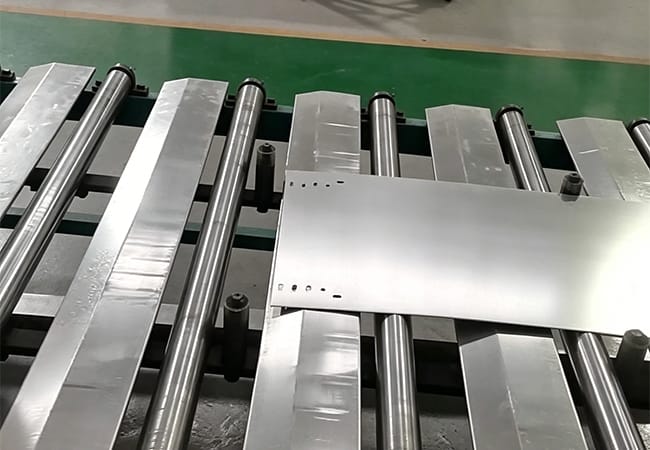

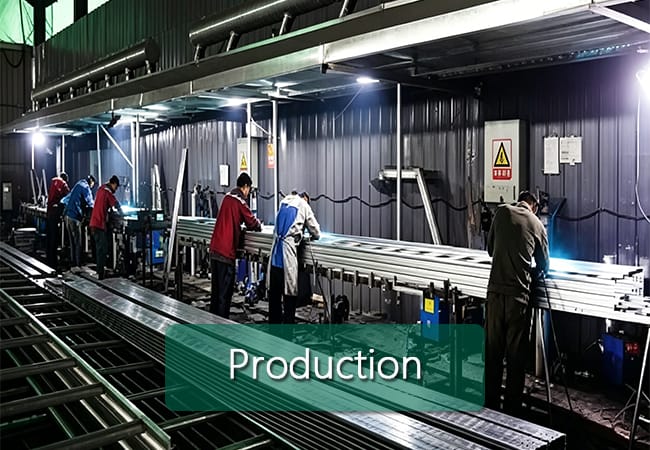

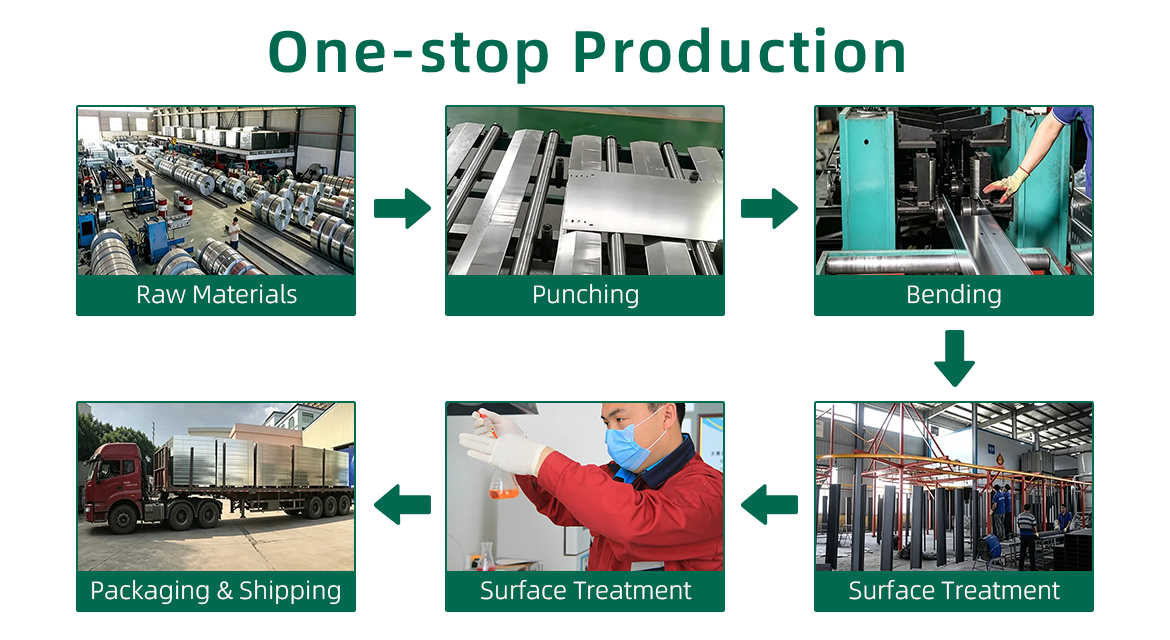

- Premium Quality: Precision stamped steel plate, integrated solid base, outstanding load-bearing capacity and full dust-proof cable protection.

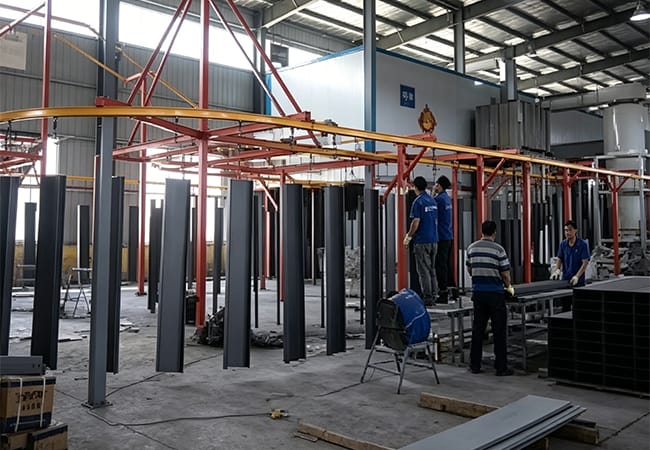

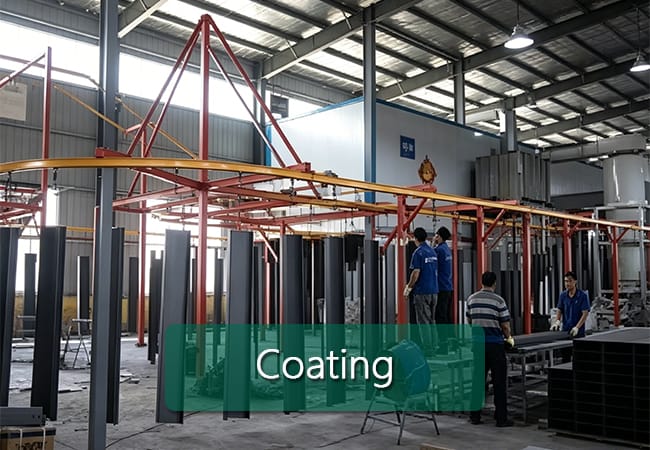

- Durable Surface Treatments: Hot-dip galvanizing, powder coating, PVC/PE coating for powerful anti-corrosion, rust and UV resistance.
- Versatile Specifications: Height 50/75/100/150/200mm; Width 100–800mm; Length 2m (customizable); color industrial gray (customizable).
- Easy Installation: Modular design with matched support fittings, welding-free assembly to cut labor cost and construction period.
- Wide Applications: Industrial plants, commercial buildings, tunnels, data centers, municipal infrastructure and renovation projects.

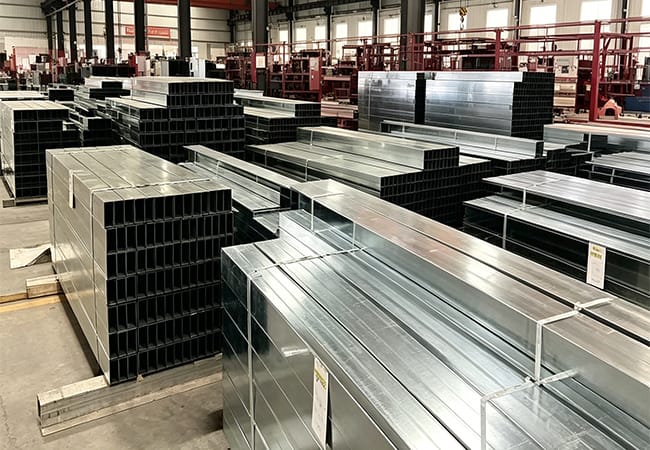

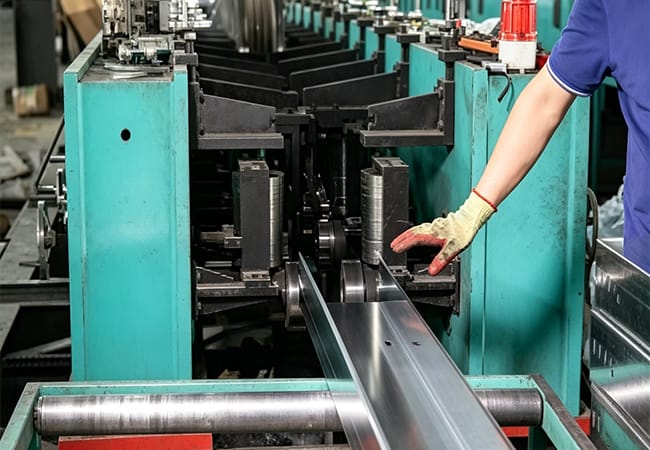

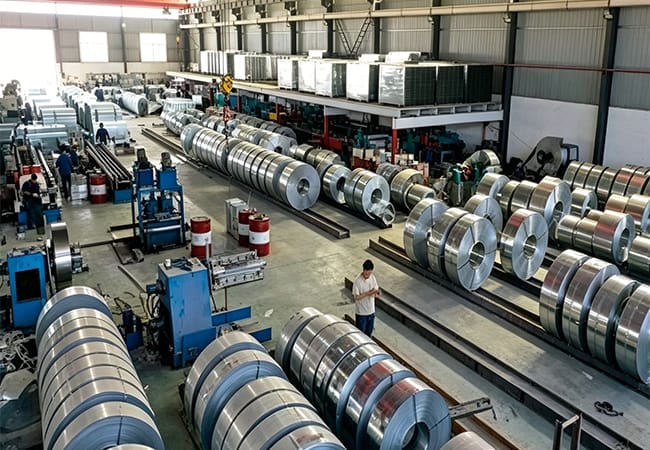

- Professional Strength: 30+ years manufacturing experience (Anping, China’s Wire Mesh Hometown), standardized quality control system.
- Global Service: Custom sizes, fast delivery, professional technical guidance and complete after-sales support for worldwide buyers.
