Industrial electrical rooms, equipment fire compartments and factory chemical zones have always been high-risk areas for building electrical wiring. Most engineering teams tend to choose ladder or perforated cable trays for universal laying due to low cost and convenient heat dissipation. However, open-structured trays cannot block floating dust, oil mist, water splashes and flame spread in confined high-risk spaces. Long-term operation will lead to cable jacket contamination, insulation aging, and even fire spreading along cable gaps, causing serious safety hazards and unqualified fire acceptance.
As a fully enclosed protective wiring carrier, solid bottom cable tray features integral closed structure, excellent dustproof, waterproof and fire barrier performance. It is the only compliant choice for life safety circuits, fire-resistant wiring and polluted industrial areas. BDCABLETRAY recently completed a full electrical system renovation project for a manufacturing plant’s central electrical room, solving long-term dust accumulation and fire hidden dangers with customized solid bottom cable tray systems. This article shares real on-site pain points, targeted solutions and long-term operational benefits.
Project Background & On-Site Wiring Pain Points
This project is a central electrical room renovation for a large mechanical manufacturing factory. The electrical room undertakes the power distribution of the entire production workshop, including fire alarm circuits, emergency power supply lines, equipment control signal lines and conventional power distribution cables. The original wiring system adopted perforated cable trays. After years of operation, multiple prominent problems appeared, restricting safe production and standardized fire management.
Serious Dust & Oil Mist Accumulation on Cables
The electrical room is adjacent to the production workshop. A large amount of metal dust, oil mist and floating impurities drift into the room during daily processing. The open holes of perforated trays cannot block falling dust. Impurities accumulate on cable surfaces for a long time, which not only affects heat dissipation, but also corrodes cable insulation layers, easily causing leakage and short-circuit faults.
No Effective Fire Barrier for Cross-Zone Wiring
The original open tray structure formed through gaps between floors and walls. Once a local electrical fire occurs, flames and toxic smoke will spread rapidly along the cable laying passages, expanding the accident scope. The open structure cannot meet the fire blocking requirements of building electrical codes, resulting in failed annual fire safety audits.
Vulnerable to Water Splash & Humid Erosion
The factory needs regular equipment cleaning and floor flushing. Water splashes easily penetrate the open tray holes and adhere to cable surfaces. The long-term humid environment accelerates insulation aging, greatly reducing the service life of high-value fire-resistant cables and increasing daily maintenance costs.
Mixed Wiring Causes Signal Interference & Chaos
Open trays cannot form independent closed protection spaces. Power cables and weak current signal cables are laid in mixed open areas, resulting in obvious electromagnetic interference. The workshop often encounters unstable equipment signal transmission and delayed fire alarm response, affecting normal production and safety monitoring.
BDCABLETRAY Custom Solid Bottom Cable Tray Solution

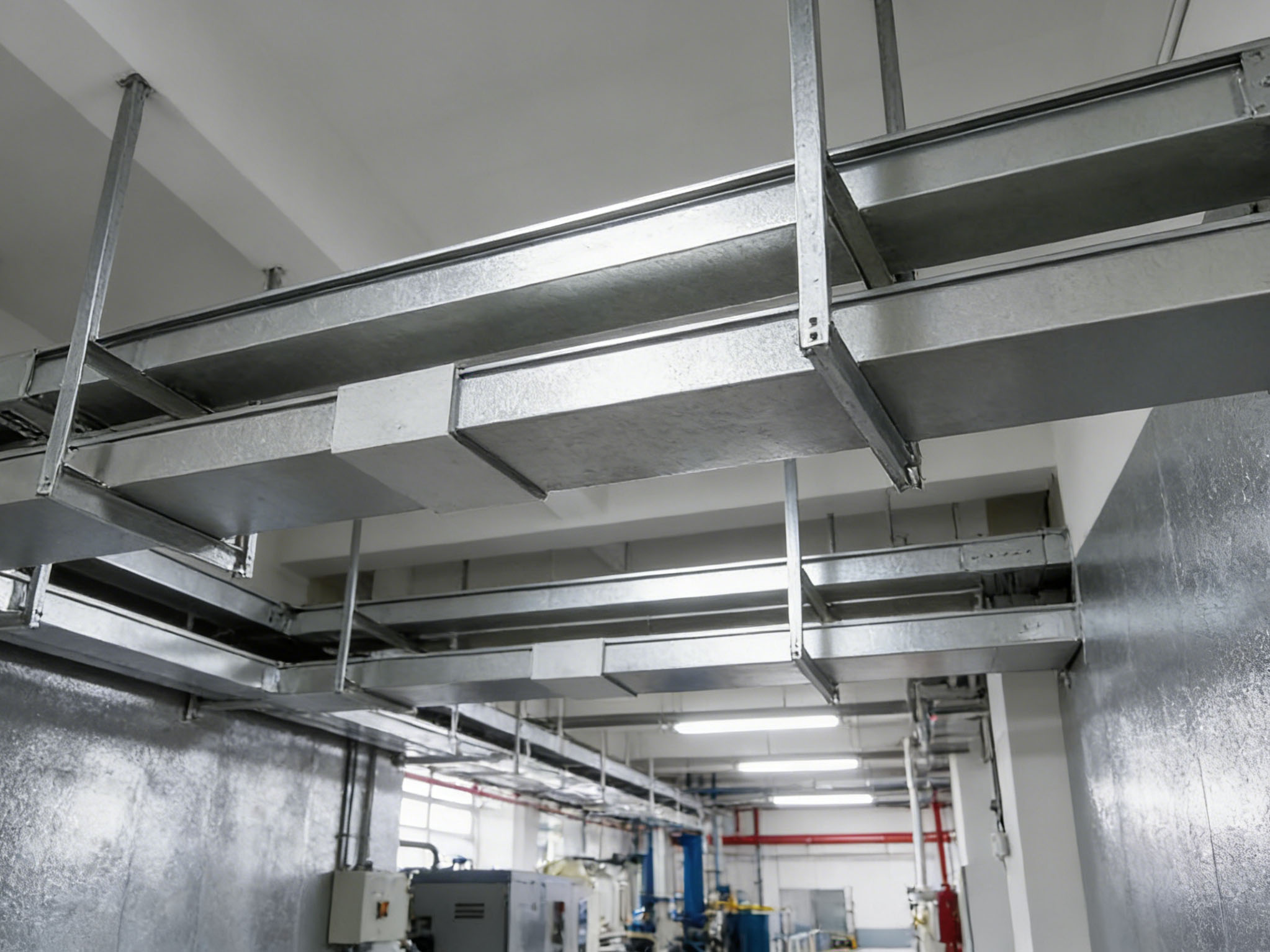

Combined with the client’s dust pollution, fire protection and anti-interference requirements, the BDCABLETRAY engineering team completely replaced the original open trays with high-quality hot-dip galvanized solid bottom cable trays. We matched sealed covers and fireproof accessories according to zoning standards, realizing full closed protection, fire barrier isolation and classified wiring, thoroughly solving various on-site wiring pain points.
Fully Closed Structure for Full Dust & Water Proofing
Different from hollow perforated and ladder trays, BDCABLETRAY solid bottom cable trays adopt integral one-piece closed bottom plate and surrounding side plate structure. Cooperated with fully matched sealed covers, the whole system forms a completely closed wiring space. It effectively isolates external dust, oil mist, floating debris and cleaning water splashes, keeping internal cables clean and dry all year round, and eliminating insulation corrosion caused by environmental pollution.
Integrated Fire Barrier Design for Fire Safety Compliance
The closed solid bottom structure naturally blocks vertical and horizontal flame spread channels. For wall penetration and floor crossing positions, we support customized fireproof sealing plates and fire blocking accessories. The segmented closed layout forms multiple independent fire isolation zones, which can effectively prevent flame and smoke from spreading along cable passages in case of fire, fully meeting industrial electrical fire protection acceptance standards.
Independent Closed Zoning Avoids Electromagnetic Interference
In this project, we adopted partitioned solid bottom tray layout. Fire emergency circuits, weak current signal lines and conventional power cables are placed in independent closed trays respectively. The metal closed structure plays a good electromagnetic shielding role, isolating mutual interference between strong and weak current circuits, stabilizing equipment signal transmission and ensuring sensitive and accurate response of fire alarm systems.
High-Strength Anti-Corrosion Material Adapted to Harsh Environment
All solid bottom trays used in the project adopt thickened hot-dip galvanized steel plate molding. The thick zinc layer provides reliable anti-rust and anti-corrosion protection against long-term indoor humidity and oil mist erosion. The overall structural rigidity is high, not easy to deform and sag under heavy cable load, ensuring long-term stable bearing and protective performance.
Standard Modular Assembly for Neat Layout
The solid bottom tray system adopts standardized modular design, including straight sections, elbows, tees and reducing fittings. The bolt assembly structure realizes seamless docking of the whole line. The layout is flat and neat without gaps, avoiding hidden dust accumulation and fire hazards caused by uneven butt joints, and improving the overall standardized level of the electrical room.
Post-Project Operation Effects & Comprehensive Advantages
After the completion of the solid bottom cable tray renovation, the overall safety level and standardized management level of the factory electrical room have been comprehensively upgraded. After one year of stable operation, the problems of cable dust accumulation, oil pollution and signal interference have been completely eliminated. The electrical room successfully passed the annual fire safety audit and industrial electrical standardized acceptance at one time.
The fully closed protection structure keeps all internal wiring clean and dry, effectively delaying cable insulation aging and extending the service life of expensive fire-resistant cables and signal lines. The independent fire barrier zoning realizes precise fire prevention and isolation, eliminating the risk of fire spreading along cables. The electromagnetic shielding effect ensures stable operation of workshop automatic equipment and fire alarm systems, avoiding production losses caused by signal failure.
In addition, the neat and uniform closed tray layout optimizes the overall environment of the electrical room, facilitates daily inspection and maintenance work, reduces manual cleaning and fault maintenance frequency, and creates long-term economic and safety benefits for the enterprise.
Main Application Scenarios of BDCABLETRAY Solid Bottom Cable Tray
Industrial Electrical Rooms & Fire Compartments
Suitable for central power distribution rooms and fire isolation zones requiring strict fire blocking and dust prevention, ensuring safe and compliant operation of life safety circuits.
Chemical & Oil-Polluted Workshops
Adapt to industrial environments with oil mist, chemical volatile matter and dust pollution, protecting cables from corrosive substance erosion.
Basement & Humid Underground Spaces
Ideal for humid and water-prone basement electrical wells and underground wiring passages, achieving waterproof and moisture-proof protection.
Building Life Safety & Emergency Circuits
Specially used for fire alarm lines, emergency power supply and lighting circuits, providing closed fire-resistant protection for key safety wiring.
Core Product Advantages
Full Closed Dustproof & Waterproof Protection
Integral solid bottom + sealed cover structure completely isolates dust, oil mist and water splash, keeping internal cables clean for long-term stable operation.
Effective Fire Barrier & Flame Retardant
Closed structure blocks fire spread channels, cooperates with fire blocking accessories to form multi-layer fire isolation, meeting industrial fire protection standards.
Excellent Electromagnetic Shielding Performance
Metal closed structure effectively isolates electromagnetic interference between strong and weak current circuits, ensuring stable signal transmission.
Durable & Low Maintenance
Hot-dip galvanized anti-corrosion process resists harsh industrial environment erosion, reducing later maintenance and replacement costs.
If you need dustproof, fireproof and anti-interference solid bottom cable tray solutions for electrical room renovation, industrial polluted areas and fire safety wiring projects, contact BDCABLETRAY. We provide free on-site environment evaluation, personalized wiring scheme design, factory direct supply and full after-sales service to help you build compliant and long-term stable electrical wiring systems.
