In industrial production workshops, pharmaceutical clean rooms, chemical plants and data center supporting facilities, cable wiring faces complex environmental challenges. Ordinary ladder and perforated cable trays adopt hollow or mesh structures, which cannot block dust accumulation, liquid splashing and falling debris. In high-precision production and corrosive industrial scenarios, exposed cables are prone to insulation aging, signal interference and short-circuit hidden dangers, bringing frequent maintenance troubles and operational safety risks to enterprises.
Solid bottom cable trays feature a fully enclosed seamless bottom structure, abandoning hollow ventilation design. They deliver comprehensive physical protection, dust isolation, liquid splash resistance and electromagnetic shielding performance, making them the preferred wiring solution for high-standard industrial environments. BDCABLETRAY specializes in customized heavy-duty solid bottom cable tray systems for harsh industrial scenarios. This article shares a practical food processing factory wiring renovation case, analyzing on-site pain points, customized solutions and actual operational effects after project delivery.
Project Background & On-Site Wiring Pain Points
This project is a large-scale food processing and packaging factory in Southeast Asia, covering an area of 18,000 square meters. The production workshop involves raw material cleaning, liquid seasoning processing, automated packaging and sterile filling processes. The site has long-term water splashing, oil fume adhesion and fine powder floating. The original wiring system adopted traditional perforated cable trays, which exposed multiple safety and management problems after two years of operation, forcing a full-system safety upgrade.
Dust & Liquid Residues Penetrate to Pollute Cables
The porous structure of perforated trays cannot block floating flour powder, oil mist and cleaning water droplets in the workshop. A large amount of dust and oily residues accumulate on the cable surface for a long time. During daily equipment flushing and workshop cleaning, water easily penetrates the tray body, causing cable insulation layer contamination and accelerated aging, which seriously affects electrical safety stability.
Falling Debris Cause Local Circuit Short-Circuit Risks
Small packaging debris and processing residues often fall through tray holes and press on wire harnesses. Long-term extrusion will wear cable insulation, leading to leakage and short-circuit faults. The factory previously experienced multiple sudden equipment shutdowns caused by debris jamming, affecting continuous production efficiency.
Weak Anti-EMI Ability Interferes with Precision Equipment Signals
The workshop is equipped with a large number of automated packaging machines and intelligent detection instruments. Ordinary open-type cable trays lack effective electromagnetic shielding performance. Power cable current interference affects the signal stability of precision control cables, resulting in occasional data deviation and equipment misoperation.
Difficult Daily Cleaning & High Maintenance Costs
Residues trapped in tray holes are difficult to clean thoroughly. Manual cleaning requires repeated inspection and wire arrangement, consuming a lot of manpower and time. Frequent cable inspection and replacement greatly increase the daily operational maintenance cost of the factory.
BDCABLETRAY Custom Solid Bottom Cable Tray Solution
Combined with the factory’s humid, dusty and oil-polluted operating environment and sterile production standards, the BDCABLETRAY engineering team completely replaced the original open tray scheme. We customized hot-dip galvanized solid bottom cable trays with matching sealed cover plates, focusing on dustproof, waterproof splash, anti-interference and easy-clean performance. The overall solution meets food industry safety standards and realizes long-term stable wiring protection.
Integral Seamless Solid Bottom for Full Isolation Protection
Different from perforated and ladder structures, BDCABLETRAY solid bottom cable trays adopt one-piece rolling forming with no gaps or holes at the bottom. The fully closed structure completely isolates floating dust, oil mist, cleaning sewage and falling debris, ensuring the internal cable harness is always in a clean and dry environment. It fundamentally solves the problem of cable contamination and damage caused by environmental pollution.
Reinforced Plate Improves Load-Bearing & Deformation Resistance
We selected thickened industrial steel plates for customized production. Compared with ordinary trays, the solid bottom structure increases the overall section modulus, improving load capacity by 15% to 20%. It can bear the weight of dense power cables and control cables without local deformation or sagging, adapting to long-distance overhead laying and high-load wiring requirements of industrial workshops.
Hot-Dip Galvanized Process Resists Corrosion & Aging
The whole tray body undergoes high-standard hot-dip galvanizing anti-corrosion treatment. The thick and uniform zinc layer covers the plate surface and welding points, effectively resisting the corrosion of food-grade cleaning agents, humid water vapor and oil stains. It avoids rusting and structural aging of the tray body, ensuring long-term stable service life in harsh workshop environments.
Matching Sealed Cover Plates Enhance Safety & Standardization
The project is equipped with fully matching galvanized cover plates for all solid bottom trays. The snap-on sealing structure prevents external foreign matter from entering from the top and sides. It further optimizes electromagnetic shielding performance, effectively isolating current interference between strong and weak current cables, and ensuring stable operation of precision automated equipment.
Smooth Surface Design for Easy Daily Cleaning
The integral solid bottom has a flat and smooth surface without dead corners and gap dirt accumulation. Workshop staff can complete daily cleaning with simple wiping and flushing. No residual debris or oil stains remain, which fully meets the high-cleanliness management requirements of food processing workshops and reduces post-maintenance pressure.
Post-Installation Operation Effects & Project Advantages

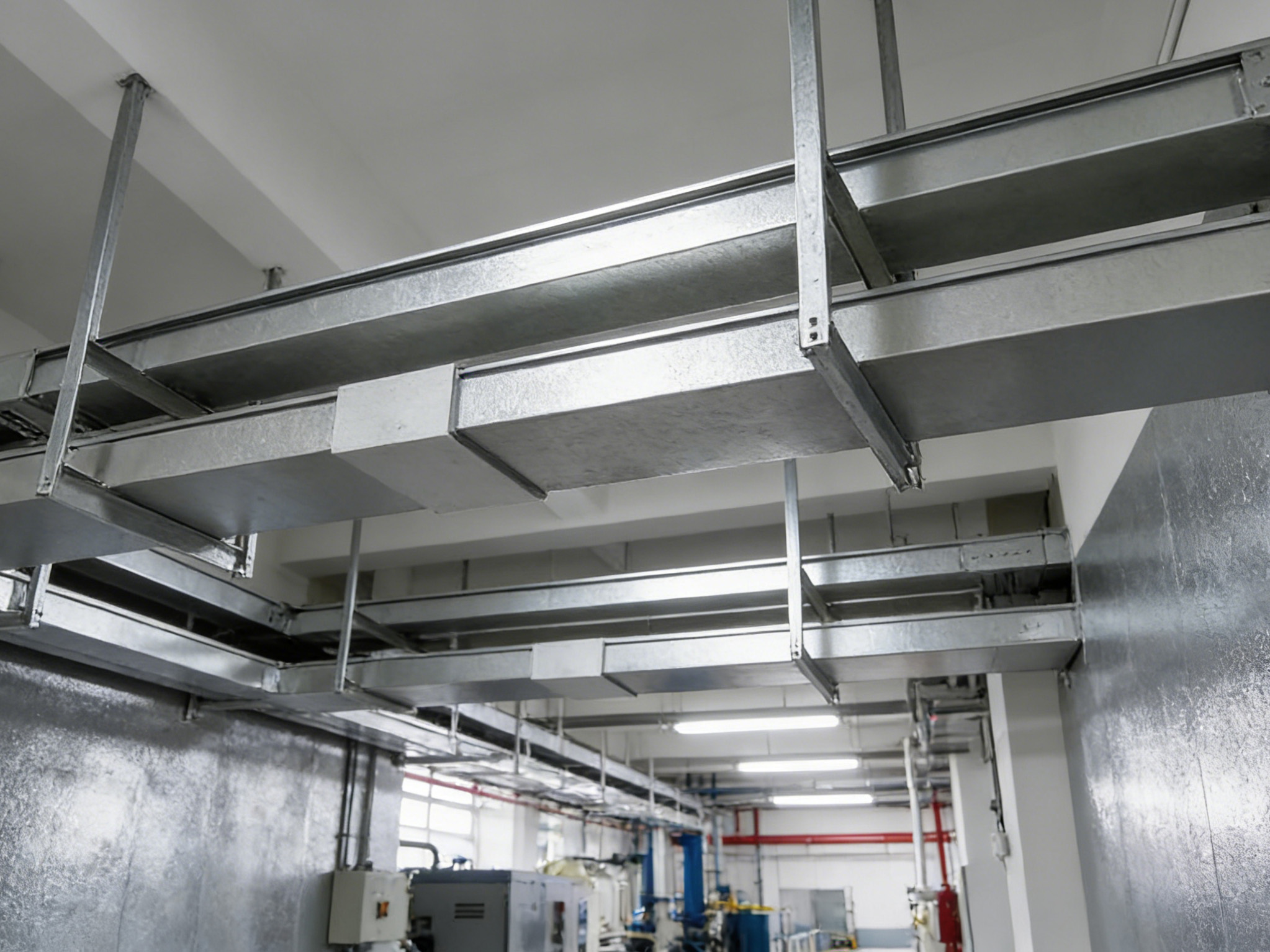

After the completion of the BDCABLETRAY solid bottom cable tray renovation, the overall electrical wiring safety level and workshop environmental standardization of the food factory have been comprehensively upgraded. After one year of continuous production operation, no cable contamination, signal interference or short-circuit failure has occurred.
The fully enclosed solid structure completely blocks dust and liquid pollution, keeping all internal cables clean and dry permanently. The equipment misoperation rate caused by signal interference is reduced to zero, and the continuous production stability is greatly improved. The easy-clean structure reduces daily electrical maintenance workload by more than 80%, saving a lot of labor and replacement costs. The neat and standardized closed wiring layout also helps the factory pass multiple food safety and industrial electrical standard audits smoothly.
In addition, the high anti-corrosion and anti-aging performance of the hot-dip galvanized solid bottom tray ensures ultra-long service life, avoiding frequent renovation and secondary investment, bringing significant long-term cost-saving benefits to the enterprise.
Core Application Scenarios of BDCABLETRAY Solid Bottom Cable Tray
Food & Pharmaceutical Clean Workshops
Suitable for high-cleanliness production scenarios that require dust prevention, pollution prevention and easy cleaning, meeting industry safety and hygiene standards.
Chemical & Corrosive Industrial Plants
The closed anti-corrosion structure resists chemical liquid splashing and corrosive gas erosion, protecting internal wiring safely and stably.
Data Centers & Precision Instrument Rooms
Excellent electromagnetic shielding performance eliminates strong and weak current interference, ensuring stable signal transmission of precision equipment.
Outdoor & Open-Air Electrical Projects
Effectively resist rainwater erosion, solar aging and falling foreign matter damage, suitable for outdoor long-term exposed wiring.
If you need dustproof, anti-corrosion and anti-interference solid bottom cable tray customized solutions for industrial workshop renovation and new electrical projects, contact BDCABLETRAY. We provide free on-site survey, professional scheme design, global factory direct supply and full-cycle after-sales technical support.
FAQ
1. What are the unique advantages of solid bottom cable trays compared with perforated and ladder trays?
Solid bottom cable trays adopt a fully enclosed seamless bottom structure, featuring excellent dustproof, waterproof splash, debris isolation and electromagnetic shielding performance. Unlike open trays that focus on heat dissipation, it prioritizes full cable protection, effectively avoiding cable pollution, signal interference and short-circuit risks. It is more suitable for dusty, humid, corrosive and high-precision industrial scenarios with strict environmental requirements.
2. Will solid bottom cable trays cause cable overheating due to poor ventilation?
It will not affect normal operation in conventional industrial scenarios. Solid bottom trays are mainly used for low-heat control cables, signal cables and conventional power cables. For high-heat dense wiring environments, BDCABLETRAY can optimize the laying spacing and match breathable assembly structures according to actual conditions to balance protection and heat dissipation, completely avoiding overheating hidden dangers.
3. Is solid bottom cable tray suitable for outdoor engineering installation?
Absolutely suitable. Equipped with hot-dip galvanized or powder-coated anti-corrosion treatment and sealed cover plates, solid bottom trays can effectively block rainwater intrusion, solar ultraviolet aging and falling outdoor debris. They provide all-weather stable protection for outdoor wiring and have far better environmental adaptability than open trays.
4. Are solid bottom cable trays difficult to clean and maintain?
On the contrary, it is easier to maintain. The integral flat seamless bottom has no gap dead corners for dust and dirt accumulation. Daily cleaning only requires simple wiping and flushing. There is no need for complicated gap cleaning and cable sorting, which greatly reduces long-term maintenance workload and cost, especially suitable for high-cleanliness workshop scenarios.
5. Can BDCABLETRAY provide customized solid bottom cable tray solutions?
Yes. BDCABLETRAY supports full personalized customization including tray thickness, width, anti-corrosion process, cover plate matching and special bending. Our engineering team designs targeted solutions according to project environment, wiring quantity and safety standards, ensuring the trays perfectly match on-site installation conditions and long-term operational needs.
