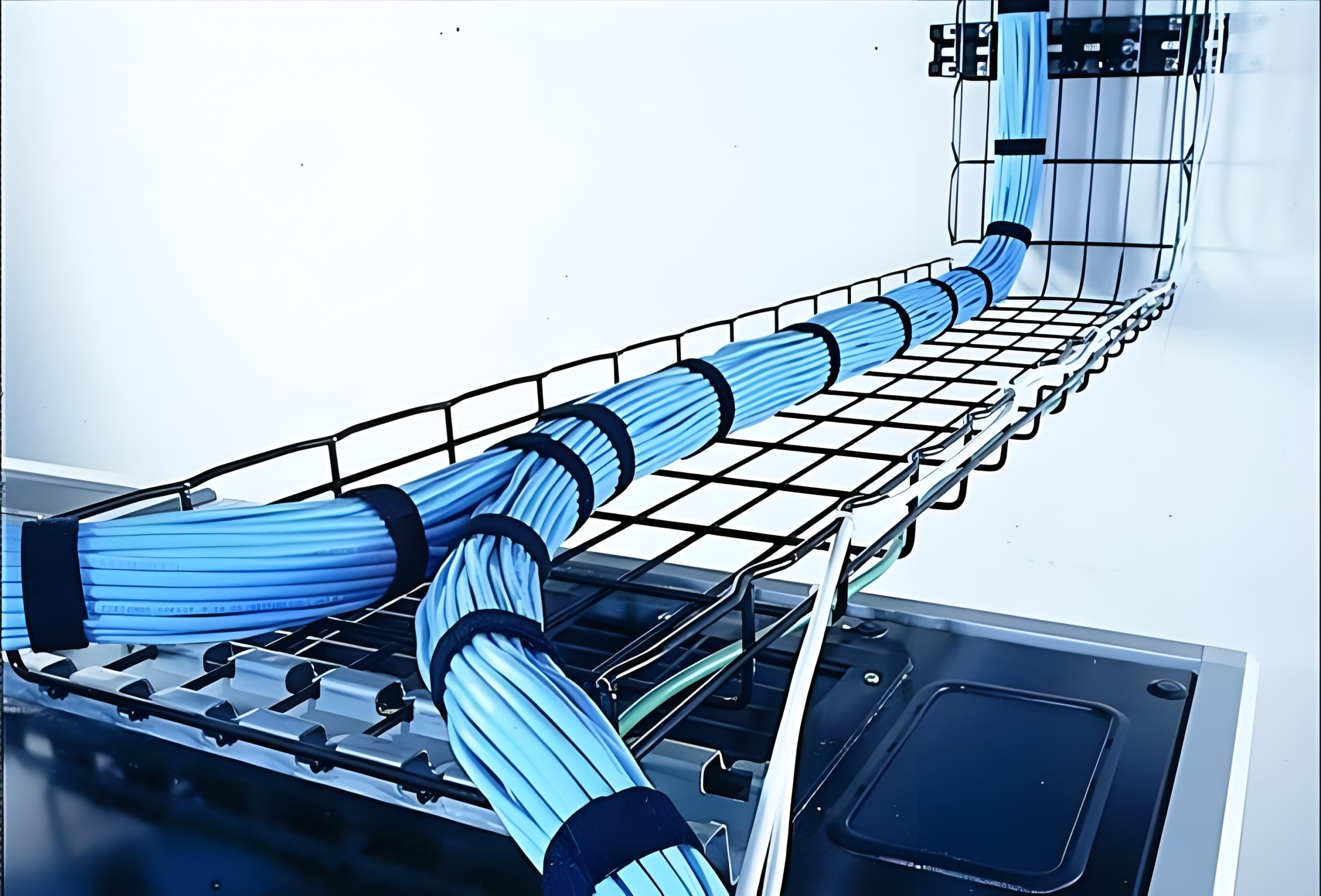

Wire mesh cable trays have become the preferred wiring solution for light-duty industrial scenarios, data centers, commercial buildings and warehouse facilities in recent years. Compared with traditional ladder and solid cable trays, mesh cable trays feature lightweight structure, full ventilation, easy cable access and flexible installation. They perfectly solve common on-site problems such as poor heat dissipation, inconvenient later maintenance and complicated layout adjustment.
As a professional cable tray manufacturer in China, BDCABLETRAY has undertaken a large number of wire mesh cable tray customized projects for global clients. We have rich practical experience in matching mesh tray solutions for different scenarios, from small indoor office wiring to large-scale data center integrated wiring. This article shares real wire mesh cable tray project cases, explaining our on-site solution ideas and practical application effects for your project reference.
Common On-Site Pain Points Solved by Wire Mesh Cable Tray
Poor Heat Dissipation of Traditional Closed Trays
Solid and closed cable trays easily accumulate heat during long-term cable operation. For dense wiring scenarios such as data centers and server rooms, heat accumulation will accelerate cable aging, increase line loss and even bring potential electrical safety hazards. Wire mesh cable trays adopt fully open mesh structure, realizing 360-degree air circulation and completely solving the heat dissipation problem of dense wiring.
Difficult Later Cable Maintenance and Adjustment
Traditional cable trays require dismantling covers and accessories when checking, replacing or adding cables, which is time-consuming and labor-intensive. In contrast, wire mesh trays have no top cover limitation. Construction and maintenance personnel can directly access any cable from the top, side and bottom, greatly improving the efficiency of later line inspection and equipment upgrading.
Heavy Weight and High Construction Cost
Ordinary steel cable trays are heavy, requiring more supporting brackets and manual installation. They also bring higher load pressure to building ceilings and wall structures. High-quality wire mesh cable trays retain structural stability while reducing overall weight, lowering the load-bearing requirement of building structures and effectively saving construction materials and labor costs.
BDCABLETRAY Typical Wire Mesh Cable Tray Project Cases
Large Data Center Integrated Wiring Project
A newly built medium-sized data center in Southeast Asia needs a large number of cable laying facilities for server room wiring. The project has dense power cables and network cables, with high requirements for heat dissipation, daily maintenance and later line expansion. Closed solid trays were completely unable to meet the long-term stable operation needs of the server room.
BDCABLETRAY provided customized hot-dip galvanized wire mesh cable tray solutions for this project. The high-density mesh structure ensures uniform bearing of scattered cables, while the fully open design realizes uninterrupted air convection, effectively reducing the ambient temperature inside the server room and avoiding local overheating of cables. The flexible splicing structure adapts to the complex ceiling wiring layout of the data center. During the later equipment expansion and line adjustment, the construction team can quickly add and modify cables without dismantling a large number of facilities. After the project was put into operation, the cable system operated stably with low failure rate, winning high recognition from the project contractor.
Modern Commercial Office Building Wiring Project
A high-end commercial office building project pursues neat wiring layout, simple construction and convenient later maintenance. The traditional heavy steel trays are bulky and difficult to install, which cannot match the refined interior wiring layout of office buildings. The customer needed lightweight, beautiful and practical cable management facilities.
We supplied electro-galvanized wire mesh cable trays for this project. The overall structure is light and neat, with smooth surface and uniform galvanized layer, no sharp burrs, and will not scratch cable insulation. The modular assembly design greatly shortens the on-site installation cycle. For irregular ceiling corners and crossing positions, flexible combination and layout adjustment can be realized. After completion, the wiring layers are clear and beautiful, which not only meets the electrical safety standards, but also improves the overall interior decoration grade of the office building.
Warehouse and Logistics Workshop Renovation Project
A large logistics warehouse underwent electrical system renovation. The workshop has a large area, scattered electrical equipment, and frequent subsequent equipment position adjustment and line expansion. The original fixed cable tray layout is rigid and unable to adapt to flexible workshop layout changes.
BDCABLETRAY adopted standard modular wire mesh cable trays for this renovation project. All mesh trays are connected by standard accessories, supporting free disassembly, splicing and re-layout. When the warehouse adjusts storage areas and equipment positions, the cable trays can be reused accordingly, avoiding repeated procurement and waste of resources. The anti-rust galvanized surface adapts to the dry and dusty indoor environment of the warehouse, ensuring long-term stable use and greatly reducing daily maintenance work.
Core Advantages Reflected in Practical Projects
Superior Heat Dissipation Ensures Line Safety
The open mesh structure is the biggest advantage of wire mesh cable trays. It completely avoids heat accumulation caused by closed wiring, ensures continuous heat dissipation of operating cables, reduces cable aging speed, and effectively reduces the occurrence of short circuit and leakage faults. It is especially suitable for high-density wiring and long-term continuous power supply scenarios.
Lightweight & Flexible for Complex Layouts
Compared with traditional steel trays, wire mesh trays are lighter in weight and easier to carry and install. They can adapt to various complex wiring environments such as ceiling suspension, wall mounting and cross-layer wiring. The flexible combination mode can solve the layout difficulties of irregular sites that cannot be solved by ordinary fixed trays.
Anti-Rust & Durable for Long-Term Use
Our wire mesh cable trays adopt electro-galvanized or hot-dip galvanized surface treatment. The dense zinc layer can effectively resist air oxidation, dust erosion and slight moisture, avoiding rust and deformation. The welded mesh structure is firm and not easy to loose or break, ensuring stable performance for long-term indoor and mild outdoor use.
If you need high-quality wire mesh cable trays for data centers, office buildings, warehouse renovation and light industrial wiring projects, please contact BDCABLETRAY. We provide free project scheme design, customized size adjustment, factory direct prices and full-process technical support to create safe and efficient cable management solutions for your projects.
FAQ
1. What scenarios are wire mesh cable trays mainly suitable for?
Wire mesh cable trays are mainly used for light-duty and medium-density wiring scenarios, including data center server rooms, commercial office buildings, logistics warehouses, indoor factory workshops and supermarket electrical wiring. They are more suitable for scenarios requiring good heat dissipation, convenient maintenance and flexible layout, compared with heavy-duty ladder trays.
2. What is the difference between wire mesh cable tray and traditional cable tray?
Wire mesh cable tray features open mesh structure, lightweight body and free cable access, with excellent heat dissipation and easy later maintenance. Traditional ladder and solid trays are heavier with closed or semi-open structure, poor heat dissipation and complicated cable adjustment. Mesh trays are more flexible for modern refined wiring and flexible layout projects.
3. Are BDCABLETRAY wire mesh cable trays rust-proof and durable?
Yes. All our wire mesh trays are treated with professional galvanizing technology. Electro-galvanized trays are suitable for dry indoor environments with good anti-rust effect. Hot-dip galvanized products can adapt to humid and mild outdoor environments, effectively resisting oxidation and corrosion. The overall welded structure is firm and durable with long service life.
4. Can wire mesh cable trays be customized for special project layouts?
Absolutely. BDCABLETRAY supports full customization of wire mesh cable trays, including mesh size, tray width, height, wire diameter and surface treatment. We can also customize special connectors, elbows and cross accessories according to complex on-site wiring paths to meet personalized layout needs of different projects.
5. Is the installation of wire mesh cable tray time-consuming and complicated?
No. Our wire mesh cable trays adopt modular design with simple assembly structure. No complex cutting and welding are required on site. Workers can complete splicing and fixing quickly with standard accessories. The installation efficiency is much higher than that of traditional cable trays, which effectively saves construction time and labor costs.
