As communication networks, cloud computing, and intelligent buildings continue to expand, cable management systems must become more adaptable, efficient, and easy to maintain. Traditional enclosed cable trays often make cable installation and future upgrades more complicated, especially in environments where network infrastructure changes frequently.
A Wire Mesh Cable Tray offers an open, lightweight, and highly flexible solution for organizing power, data, and communication cables. Its simple structure allows technicians to install, inspect, and modify cable routes quickly while maintaining excellent ventilation.
As an experienced Wire Mesh Cable Tray Manufacturer, BDCABLETRAY supplies customized cable management systems that meet the needs of data centers, office buildings, factories, hospitals, airports, and industrial projects worldwide.
What Is a Wire Mesh Cable Tray?

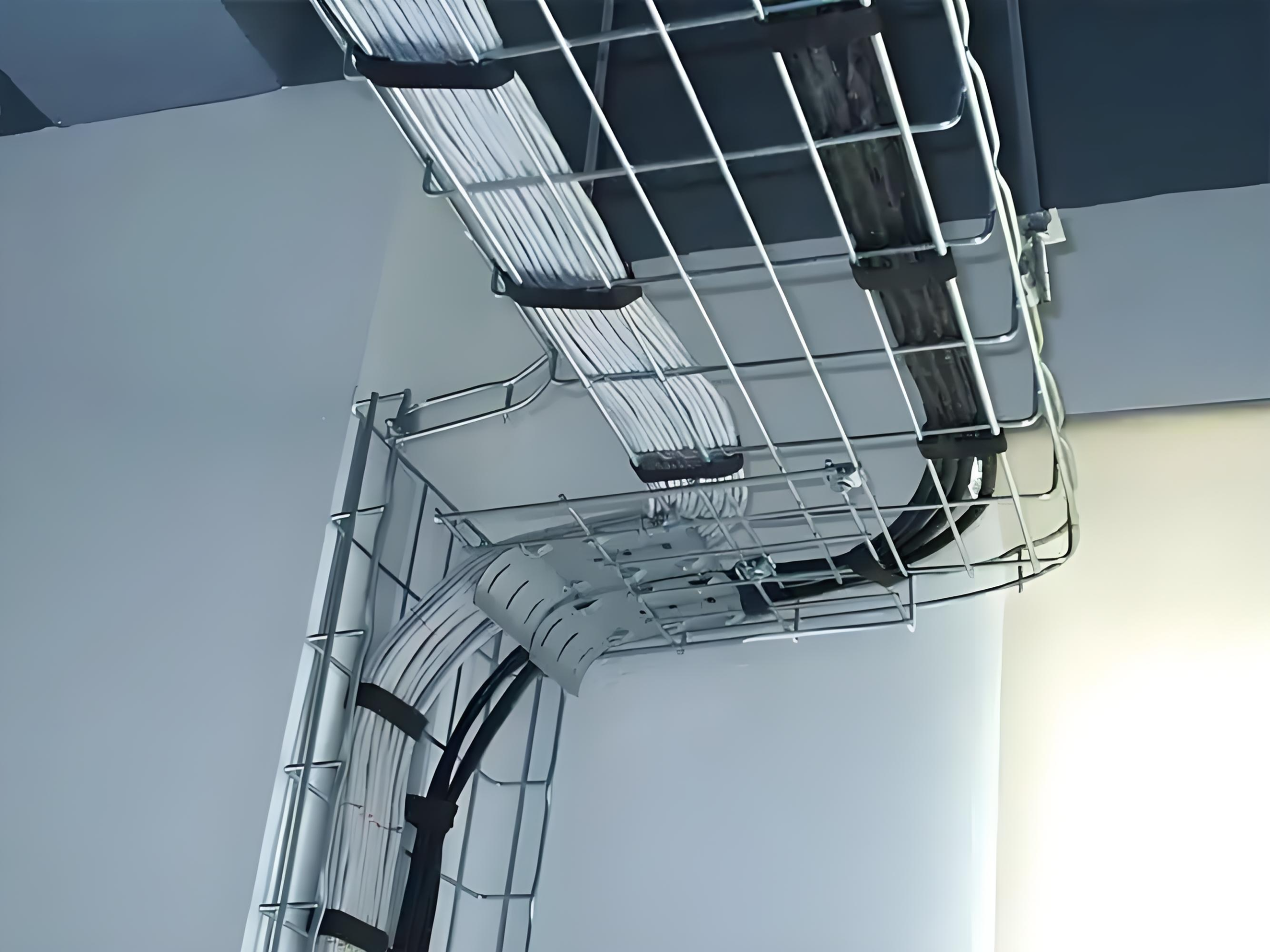

A Wire Mesh Cable Tray, also known as a Wire Basket Cable Tray, is manufactured from high-strength steel wires welded into a grid structure. Unlike traditional solid-bottom or ladder cable trays, the mesh design provides unrestricted airflow and allows cables to enter or exit the tray at almost any point.
Its lightweight construction makes installation faster while reducing the load on building support structures.
Wire Mesh Cable Trays are particularly suitable for low-voltage cables, fiber optic systems, network cables, security wiring, and building automation systems.
Why Choose Wire Mesh Cable Tray?
Easy Cable Installation
The open mesh structure allows cables to be added, removed, or rerouted without dismantling the entire tray system.
This significantly reduces installation time and simplifies future maintenance.
Excellent Air Circulation
Proper airflow helps dissipate heat generated by electrical and communication cables.
Improved ventilation contributes to stable cable performance and extends cable service life.
Flexible On-Site Modification
Wire Mesh Cable Trays can be cut, bent, or shaped directly on site using simple tools.
This flexibility minimizes the need for additional fittings and accelerates project installation.
Lightweight but Strong
Despite its lightweight design, the welded steel structure provides excellent mechanical strength and reliable cable support.
The reduced weight also lowers transportation and installation costs.
Neat Cable Organization
The open basket design keeps cables clearly arranged, making inspection, troubleshooting, and maintenance much more efficient.
Surface Finish Options
BDCABLETRAY offers several surface treatments to suit different installation environments.
Electro-Galvanized
Ideal for dry indoor environments such as office buildings and commercial facilities.
Hot-Dip Galvanized
Provides superior corrosion resistance for industrial plants and outdoor installations.
Stainless Steel 304
Suitable for humid environments, food processing plants, and medical facilities.
Stainless Steel 316
Designed for marine environments, offshore projects, and chemical processing plants where maximum corrosion resistance is required.
Available Sizes
BDCABLETRAY manufactures Wire Mesh Cable Trays in a wide range of specifications.
Available options include:
- Width: 50–600 mm
- Height: 30–150 mm
- Length: 3000 mm standard
- Wire Diameter: 4–6 mm
- Customized sizes available
Accessories include:
- Horizontal bends
- Vertical bends
- Tee fittings
- Cross fittings
- Reducers
- Wall brackets
- Ceiling hangers
- Splice connectors
- Fasteners
Typical Applications
Data Centers
Support structured cabling systems while allowing easy expansion as IT infrastructure grows.
Office Buildings
Organize network cables, communication wiring, and building automation systems with a clean and professional appearance.
Hospitals
Separate medical communication cables from power systems while maintaining easy maintenance access.
Airports
Provide reliable cable management for security systems, communication networks, and terminal infrastructure.
Manufacturing Facilities
Support industrial control cables and automation systems with excellent flexibility.
Retail and Commercial Buildings
Maintain organized cable routing for lighting, security cameras, and digital communication equipment.
Manufacturing Process
At BDCABLETRAY, every Wire Mesh Cable Tray is manufactured under strict quality control.
Our production process includes:
- High-quality steel wire selection
- Automatic wire straightening
- Precision robotic welding
- Dimensional inspection
- Surface treatment
- Corrosion resistance testing
- Load capacity testing
- Final quality inspection
- Secure export packaging
This ensures every product delivers reliable performance in demanding installation environments.
Why Choose BDCABLETRAY?
BDCABLETRAY has extensive experience in designing and manufacturing cable management systems for global infrastructure projects.
We offer:
- More than 15 years of manufacturing experience
- Advanced automated welding equipment
- Professional engineering support
- Customized OEM & ODM services
- Strict quality management
- Factory-direct pricing
- Fast production schedules
- Global logistics solutions
- CAD drawings and installation guidance
- Comprehensive after-sales service
Our products are exported to over 60 countries, serving contractors, distributors, data center builders, and electrical engineering companies.
Frequently Asked Questions
What types of cables are suitable for Wire Mesh Cable Tray?
Wire Mesh Cable Trays are ideal for data cables, fiber optic cables, LAN cables, communication systems, security wiring, and low-voltage power cables.
Can Wire Mesh Cable Trays be installed outdoors?
Yes. Hot-dip galvanized and stainless steel versions are specifically designed for outdoor and corrosive environments.
Can the tray be cut on site?
Yes. One of the main advantages of Wire Mesh Cable Tray is that it can be easily cut and shaped during installation without affecting its structural performance.
Does BDCABLETRAY provide customized dimensions?
Yes. We manufacture customized widths, heights, lengths, wire diameters, and surface finishes to meet project specifications.
Does BDCABLETRAY supply installation accessories?
Absolutely. We provide a complete range of connectors, brackets, bends, reducers, hangers, and other installation components.
Conclusion
A Wire Mesh Cable Tray is an efficient and cost-effective cable management solution for modern electrical and communication infrastructure. Its lightweight construction, excellent ventilation, flexible installation, and easy maintenance make it the preferred choice for projects where adaptability and long-term reliability are essential.
As a trusted Wire Mesh Cable Tray Manufacturer, BDCABLETRAY provides high-quality cable tray systems designed to meet the demands of data centers, commercial buildings, industrial facilities, healthcare projects, and intelligent infrastructure worldwide.
Whether you require electro-galvanized, hot-dip galvanized, or stainless steel Wire Mesh Cable Trays, BDCABLETRAY can deliver customized solutions backed by professional engineering support and factory-direct manufacturing.
Contact BDCABLETRAY today to request product catalogs, CAD drawings, technical consultation, and a competitive quotation.
