Project Overview

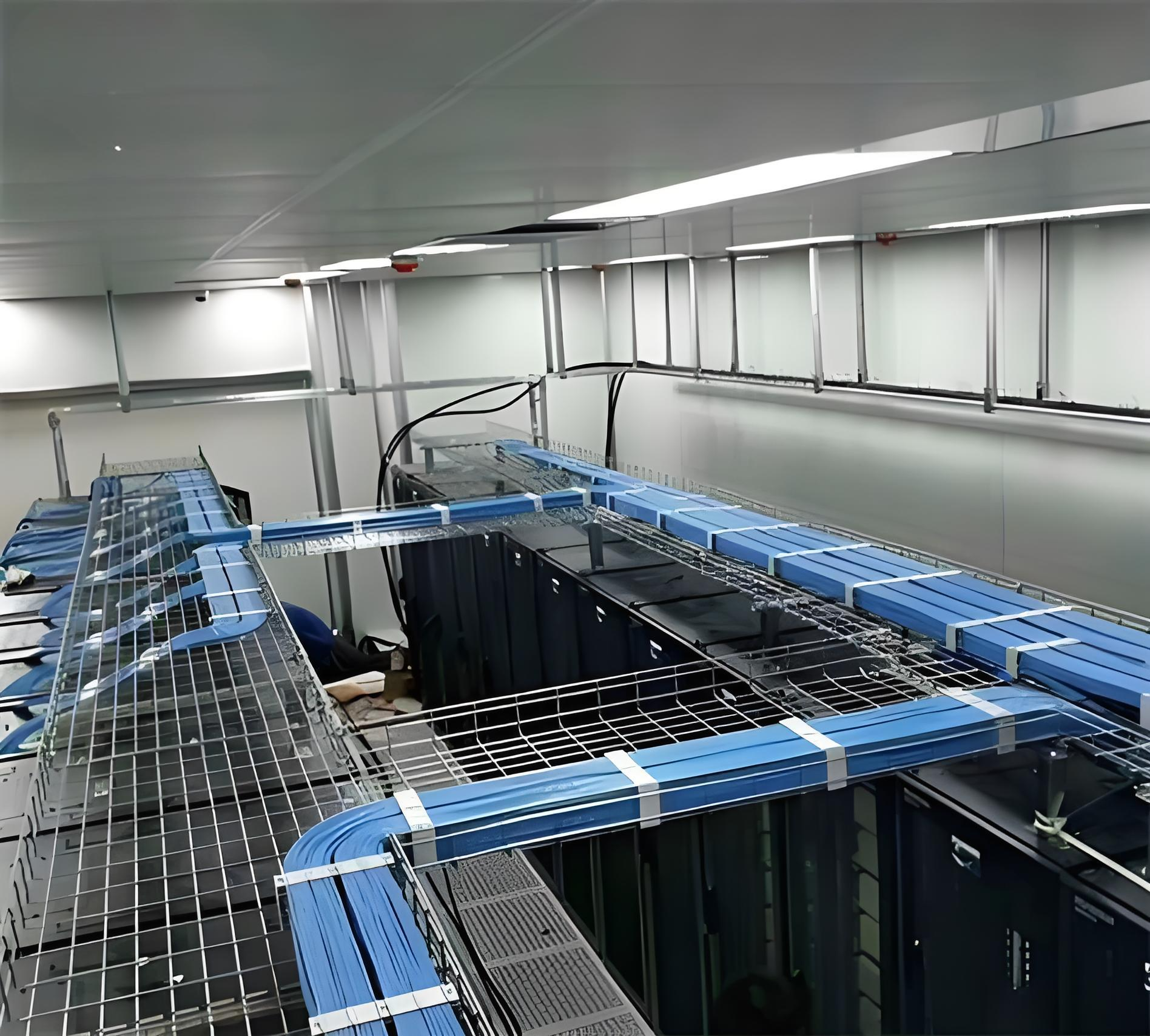

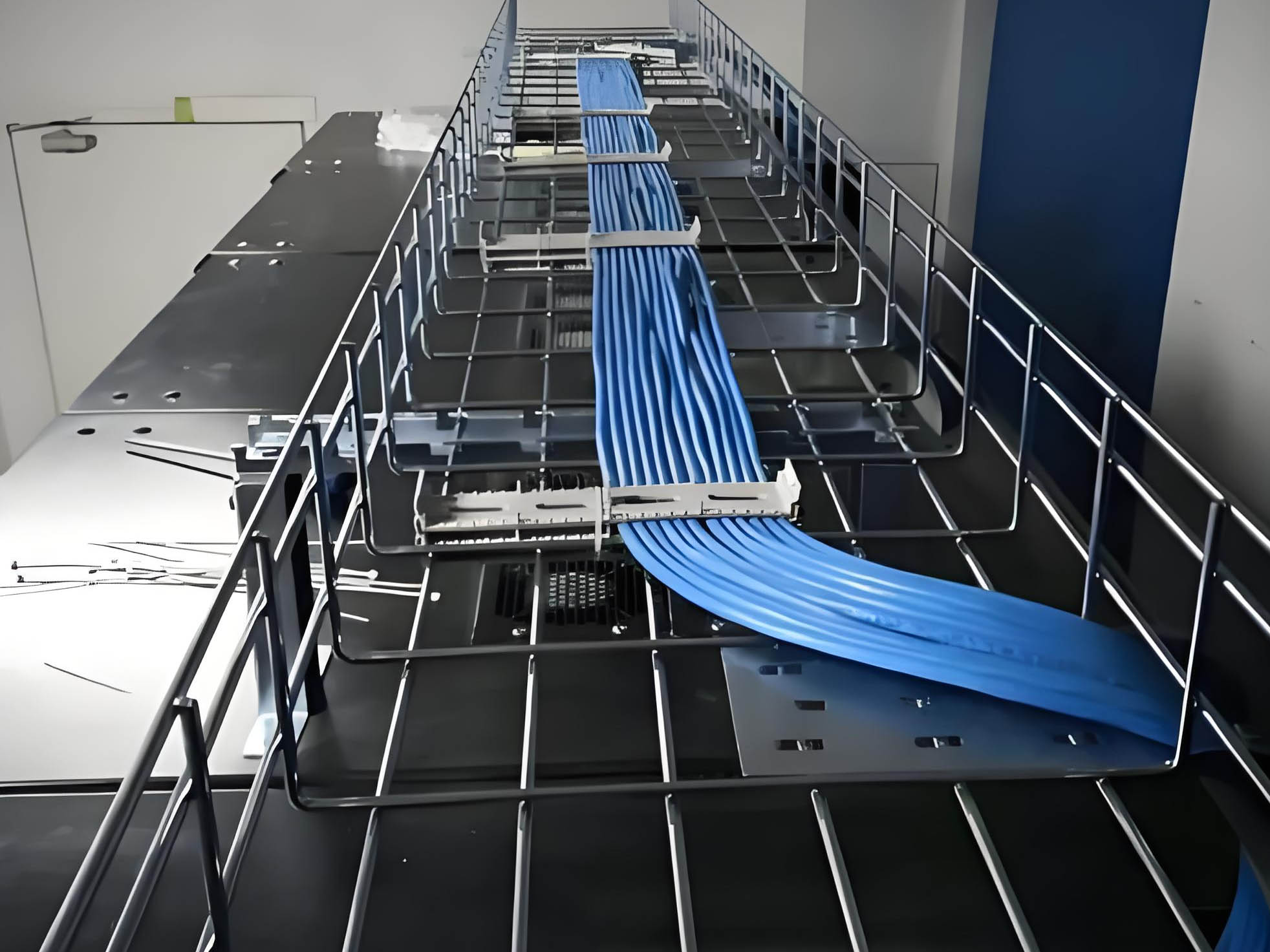

A cloud computing company was constructing a new data center to support expanding digital infrastructure. Thousands of power cables, fiber optic cables, and network cables needed to be routed throughout server rooms while maintaining excellent airflow and easy access for future upgrades.
The customer required a cable management solution that was lightweight, easy to install, and flexible enough to accommodate frequent cable changes. After evaluating the project requirements, BDCABLETRAY recommended a customized Wire Mesh Cable Tray system.
The completed installation significantly improved cable organization, reduced installation time, and simplified long-term maintenance.
Project Challenges
High Cable Density
The server rooms contained large numbers of network and power cables. The cable tray system needed sufficient capacity while preventing cable congestion.
Frequent Network Expansion
As IT equipment continues to grow, additional cables are regularly added. The cable tray had to allow easy expansion without replacing the existing system.
Limited Installation Time
The project schedule was tight, requiring a cable management solution that could be installed quickly.
Good Air Circulation
Proper airflow around cables was essential to help maintain stable equipment temperatures inside the data center.
BDCABLETRAY Solution
Customized Wire Mesh Cable Tray Design
BDCABLETRAY designed multiple tray widths based on cable quantity and routing paths. The open mesh structure made it easy to separate power cables from communication cables.
Stainless Steel Construction
To ensure durability and a clean appearance, the customer selected high-quality stainless steel wire mesh cable trays for all server room installations.
Flexible On-Site Modification
Unlike traditional cable trays, wire mesh trays can be cut and adjusted directly on site, allowing installers to quickly adapt to unexpected routing changes.
Complete Accessory System
The project included:
- Wall brackets
- Ceiling suspension kits
- Splice connectors
- Drop-out accessories
- Radius bends
- T-junctions
- Cross intersections
These accessories enabled fast installation while maintaining a neat cable routing layout.
Product Specifications
Product
Wire Mesh Cable Tray
Material
Stainless Steel 304
Wire Diameter
5 mm
Tray Width
100 mm – 600 mm
Tray Height
50 mm
Standard Length
3000 mm
Surface Finish
Electropolished
Application
Data Center Cable Management
Production Process
Premium Material Selection
BDCABLETRAY selected high-grade stainless steel wire to provide excellent corrosion resistance and structural strength.
Precision Welding
Automated welding equipment ensured consistent mesh spacing and accurate tray dimensions.
Surface Finishing
Each tray was polished to improve corrosion resistance and provide a smooth finish that protects cable jackets during installation.
Quality Inspection
Every cable tray underwent dimensional inspection, weld strength testing, and appearance checks before shipment.
Export Packaging
Products were carefully packed to prevent deformation during international transportation.
Installation Results
Faster Installation
The lightweight structure allowed technicians to complete installation more efficiently than with conventional cable tray systems.
Better Cable Organization
Power cables, fiber optic cables, and communication cables were routed separately, improving maintenance efficiency.
Easy Future Expansion
Additional cable routes can be added quickly without replacing the original tray network.
Improved Cooling Performance
The open wire mesh design allows unrestricted airflow, helping reduce heat accumulation around cable bundles.
Customer Benefits
Lower Installation Costs
The simple installation method reduced labor time and minimized project costs.
Reduced Maintenance Time
Technicians can easily inspect, replace, or add cables without dismantling the tray system.
Long Service Life
Stainless steel construction provides excellent durability even in demanding environments.
Improved Data Center Reliability
Organized cable routing helps reduce cable damage and supports stable network operation.
Why the Customer Chose BDCABLETRAY
Professional Manufacturing Experience
With over 30 years of experience, BDCABLETRAY supplies cable management solutions for industrial facilities, commercial buildings, and data centers worldwide.
Customized Engineering
Our technical team optimized tray dimensions, support spacing, and routing plans according to the customer’s server room layout.
Stable Product Quality
Advanced manufacturing equipment and strict quality inspections ensure every tray meets international standards.
Global Export Capability
BDCABLETRAY products are exported to Europe, North America, Southeast Asia, Australia, the Middle East, South America, and Africa.
Applications of Wire Mesh Cable Tray
Data Centers
Support structured cabling systems while maintaining excellent ventilation.
Office Buildings
Organize network, communication, and electrical cables above suspended ceilings.
Telecommunications Facilities
Manage fiber optic and communication cables with flexible routing options.
Manufacturing Plants
Separate control cables from power cables in automated production lines.
Hospitals
Provide organized cable management for medical equipment and IT infrastructure.
Commercial Buildings
Support electrical distribution and low-voltage communication systems.
Conclusion
This Wire Mesh Cable Tray Case Study demonstrates how a well-designed cable management system can improve installation efficiency, simplify maintenance, and support future expansion.
By choosing BDCABLETRAY, the customer received a customized Wire Mesh Cable Tray solution that combined flexibility, durability, and professional engineering support. The project continues to provide reliable cable organization while meeting the high-performance requirements of a modern data center.
If you are planning a data center, commercial building, industrial facility, or communication project, contact BDCABLETRAY today. Our team provides customized Wire Mesh Cable Tray solutions, professional technical support, factory-direct pricing, and worldwide delivery.
FAQ
What is a Wire Mesh Cable Tray?
A Wire Mesh Cable Tray, also known as a Wire Basket Cable Tray, is an open steel wire cable support system designed for power cables, network cables, fiber optic cables, and communication wiring. It offers excellent ventilation and flexible installation.
Why was a Wire Mesh Cable Tray selected for this data center project?
The customer required a lightweight, easily expandable cable management system with superior airflow. The open mesh design met these requirements while simplifying installation and future cable upgrades.
Can BDCABLETRAY customize Wire Mesh Cable Trays?
Yes. We manufacture customized Wire Mesh Cable Trays in various widths, heights, wire diameters, materials, and finishes. We also supply complete accessories and customized engineering solutions.
Which industries commonly use Wire Mesh Cable Trays?
Wire Mesh Cable Trays are widely used in data centers, telecommunications facilities, office buildings, hospitals, manufacturing plants, commercial buildings, airports, and industrial automation projects.
Why choose BDCABLETRAY as your Wire Mesh Cable Tray supplier?
BDCABLETRAY has over 30 years of manufacturing experience, advanced production technology, strict quality control, OEM & ODM capabilities, and extensive international export experience. We provide reliable cable management systems with competitive factory pricing and professional technical support.
