Electrical and communication cables are essential components of every modern building and industrial facility. In environments where cables must be protected from dust, moisture, debris, or electromagnetic interference, an open cable tray is not always the best option.

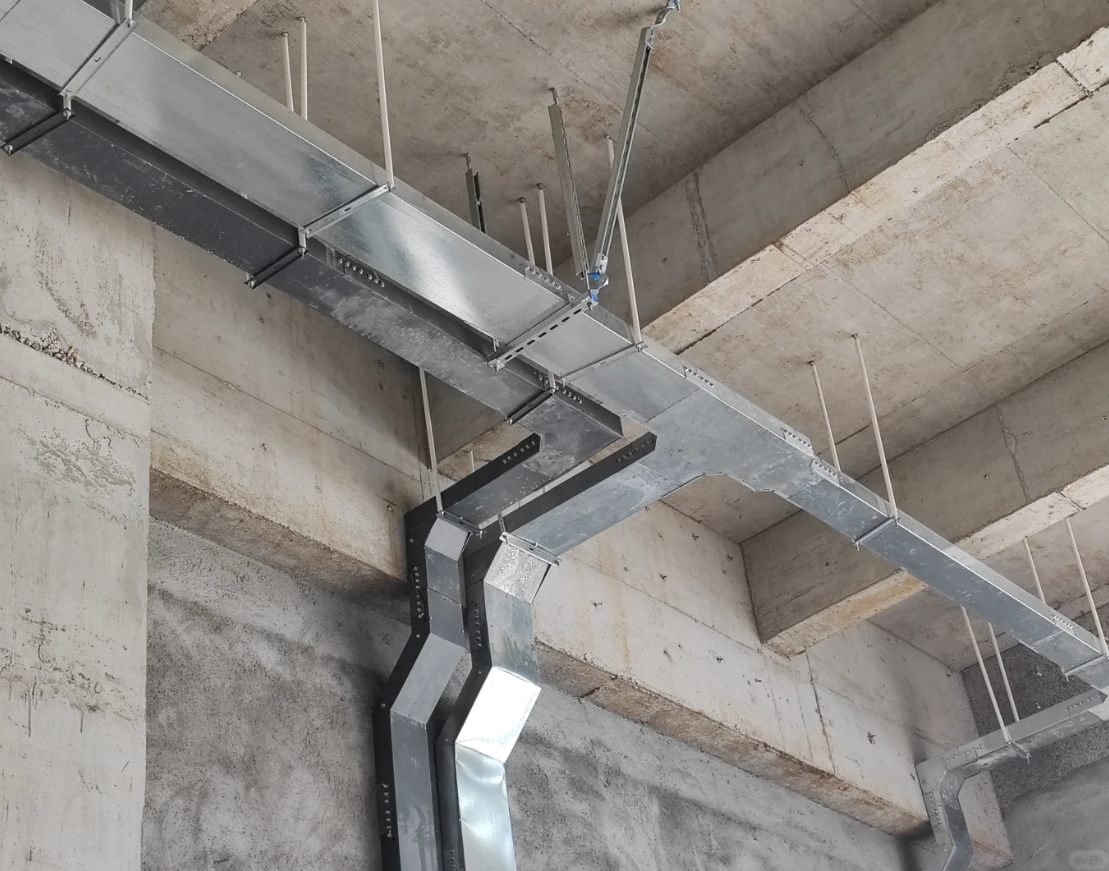

A Solid Bottom Cable Tray provides a fully enclosed cable support solution that offers superior protection while maintaining a clean and organized installation. It is widely used in hospitals, laboratories, data centers, pharmaceutical factories, office buildings, airports, and other projects where cable reliability is critical.
As a professional Cable Tray Manufacturer, BDCABLETRAY designs and manufactures high-performance Solid Bottom Cable Trays that combine structural strength, corrosion resistance, and long service life for demanding engineering projects.
What Is a Solid Bottom Cable Tray?
A Solid Bottom Cable Tray is an enclosed cable support system featuring a flat, continuous base without ventilation openings.
Unlike ladder or perforated cable trays, its closed-bottom structure shields cables from external contamination and provides additional protection for sensitive electrical and communication wiring.
The system is especially suitable for installations where cable cleanliness and environmental protection are priorities.
Why Choose a Solid Bottom Cable Tray?
Different projects require different cable management solutions.
When cables need additional protection against external conditions, a Solid Bottom Cable Tray offers several practical advantages.
Better Cable Protection
The enclosed base helps prevent dust, dirt, falling objects, and construction debris from coming into direct contact with cables, reducing the risk of physical damage.
Cleaner Cable Installation
A closed-bottom tray creates a neat and organized cable routing system, making it suitable for projects where appearance is important, such as office buildings, hospitals, and commercial facilities.
Reduced Electromagnetic Interference
When combined with appropriate covers and grounding systems, Solid Bottom Cable Trays help minimize external electromagnetic influence on communication and control cables.
Long-Term Reliability
By protecting cables from harsh environmental conditions, the tray system contributes to longer cable service life and lower maintenance costs.
Material Options
BDCABLETRAY manufactures Solid Bottom Cable Trays in various materials to suit different applications.
Pre-Galvanized Steel
Ideal for indoor commercial buildings and general electrical installations.
Hot-Dip Galvanized Steel
Recommended for outdoor environments where additional corrosion protection is required.
Stainless Steel 304
Suitable for food processing plants, pharmaceutical facilities, and humid environments.
Stainless Steel 316
Designed for marine engineering, offshore platforms, and chemical plants where corrosion resistance is essential.
Aluminum Alloy
Lightweight and naturally corrosion-resistant, making it an excellent choice for transportation hubs and modern commercial buildings.
Surface Finish Options
To meet different environmental requirements, BDCABLETRAY offers multiple surface treatments.
- Pre-Galvanized
- Hot-Dip Galvanized
- Powder Coated
- Stainless Steel Finish
- Aluminum Mill Finish
Customized finishes are available according to project specifications.
Typical Applications
Data Centers
Protect network, fiber optic, and power cables while maintaining an organized cable routing system.
Hospitals
Support critical electrical infrastructure where cleanliness and cable protection are essential.
Pharmaceutical Facilities
Provide enclosed cable management for clean production environments.
Commercial Buildings
Create a professional cable management system above ceilings and inside service corridors.
Airports
Manage electrical and communication cables throughout terminal buildings and technical areas.
Industrial Plants
Protect instrumentation and control cables from dust and mechanical damage.
Educational Institutions
Provide reliable cable management for classrooms, laboratories, and campus infrastructure.
Standard Accessories
BDCABLETRAY supplies a complete range of accessories to simplify installation.
Available accessories include:
- Horizontal Bends
- Vertical Elbows
- Tee Fittings
- Cross Fittings
- Reducers
- Solid Covers
- Couplers
- Support Brackets
- Hanging Systems
- Fasteners
- End Caps
All accessories are manufactured to ensure compatibility and efficient installation.
How to Select the Right Solid Bottom Cable Tray
Choosing the correct cable tray involves evaluating several project requirements.
Cable Capacity
Estimate both current and future cable volumes to ensure adequate tray width and depth.
Installation Location
Indoor installations may use pre-galvanized steel, while outdoor or corrosive environments require stainless steel or hot-dip galvanized materials.
Environmental Conditions
Projects involving moisture, chemicals, or hygiene requirements should prioritize corrosion-resistant materials.
Support Requirements
Determine cable weight and support spacing to ensure long-term structural stability.
Future Maintenance
Select tray sizes that allow sufficient working space for cable additions and maintenance.
Quality Manufacturing at BDCABLETRAY
Every Solid Bottom Cable Tray undergoes strict quality control throughout the production process.
Manufacturing procedures include:
- Raw material inspection
- CNC sheet metal cutting
- Precision bending
- Automatic welding
- Surface treatment inspection
- Dimensional verification
- Load capacity testing
- Packaging inspection
This comprehensive quality management system ensures every product meets international engineering standards.
Why Engineers Choose BDCABLETRAY
BDCABLETRAY has supplied cable management systems for projects around the world by combining reliable manufacturing with responsive technical support.
Our advantages include:
- More than 15 years of cable tray manufacturing experience
- Advanced CNC production equipment
- Professional engineering team
- Customized OEM & ODM manufacturing
- Wide range of material options
- Strict quality control
- Competitive factory-direct pricing
- Fast production schedules
- Global shipping capability
- Complete technical documentation
We serve electrical contractors, EPC companies, distributors, wholesalers, and industrial project developers worldwide.
Frequently Asked Questions
When should I use a Solid Bottom Cable Tray?
Solid Bottom Cable Trays are recommended when cables require additional protection from dust, debris, moisture, or other environmental contaminants.
Can the tray be installed outdoors?
Yes. Hot-dip galvanized, stainless steel, and aluminum alloy versions are suitable for outdoor environments.
Are customized sizes available?
Yes. BDCABLETRAY manufactures customized widths, heights, lengths, materials, and accessories according to project requirements.
What industries commonly use Solid Bottom Cable Trays?
They are widely used in hospitals, pharmaceutical factories, data centers, airports, office buildings, industrial facilities, and commercial infrastructure projects.
Does BDCABLETRAY support OEM manufacturing?
Yes. We provide OEM and ODM manufacturing services, including customized branding, packaging, dimensions, and technical specifications.
Conclusion
A Solid Bottom Cable Tray is the ideal cable management solution for projects requiring maximum cable protection, clean installation, and long-term reliability. Its enclosed design safeguards electrical and communication cables from environmental contaminants while providing an organized and professional cable routing system.
As a trusted Cable Tray Manufacturer, BDCABLETRAY offers customized Solid Bottom Cable Tray solutions for commercial, industrial, and infrastructure projects worldwide. With advanced manufacturing technology, strict quality control, and comprehensive engineering support, we help customers build safer and more efficient electrical systems.
Contact BDCABLETRAY today to request product catalogs, technical drawings, and a competitive factory quotation.
