Why Ladder Cable Tray Is Widely Used
Modern electrical systems require cable management solutions that are strong, easy to maintain, and capable of supporting large cable loads. Among the various cable tray systems available, the Ladder Cable Tray remains one of the most widely used options for industrial facilities, power plants, commercial buildings, and infrastructure projects.
BDCABLETRAY designs and manufactures high-quality ladder cable trays that provide dependable cable support while making installation and future maintenance easier. Built for demanding environments, our products help keep power, control, and communication cables organized and protected.
What Is a Ladder Cable Tray?
Product Overview

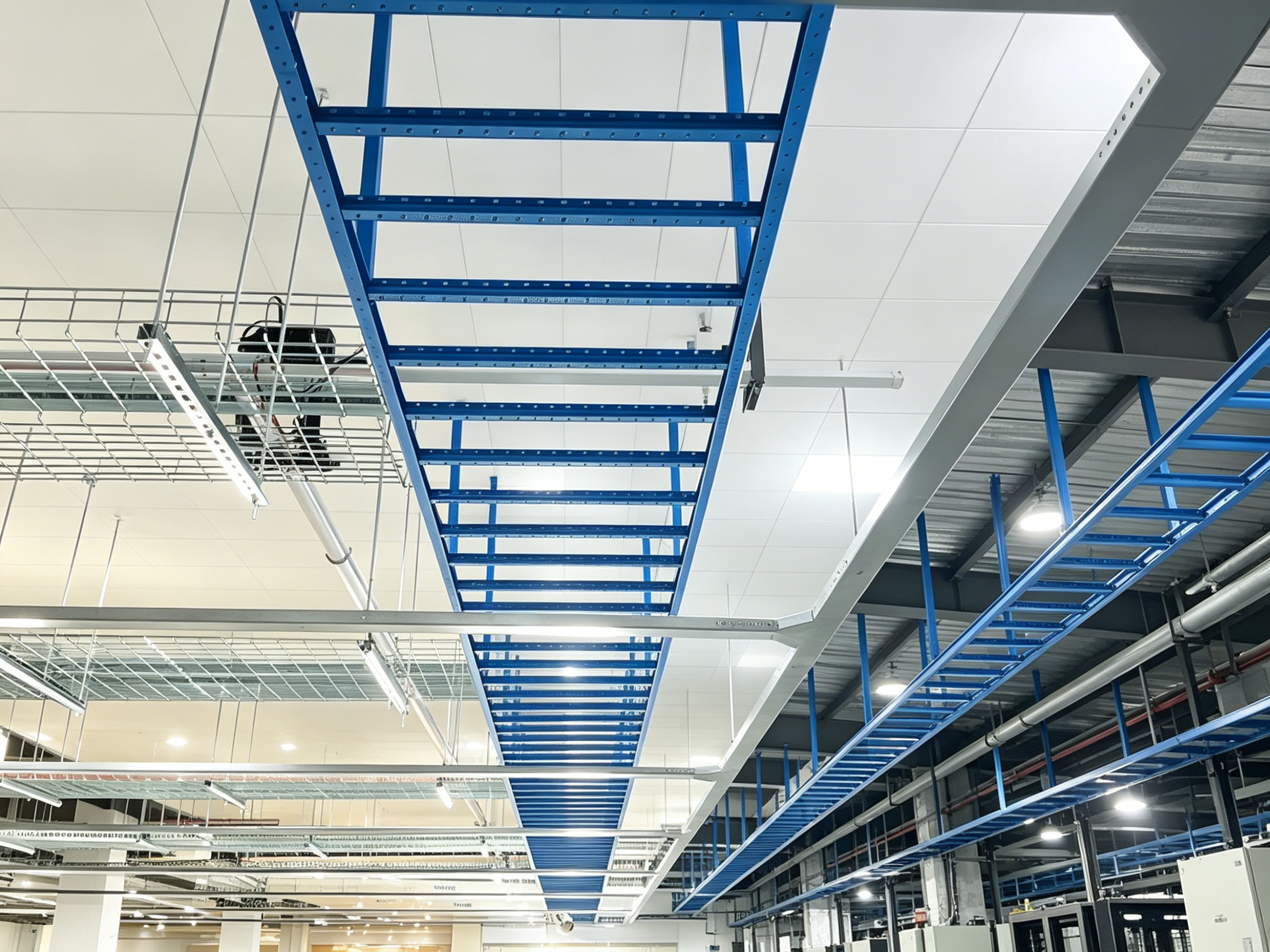

A Ladder Cable Tray is an open cable support system consisting of two side rails connected by evenly spaced cross rungs. This design allows cables to be securely supported while providing excellent airflow around the cable bundle.
Because heat can dissipate naturally, ladder cable trays are often selected for medium- and high-voltage power cables that generate more heat during operation.
Main Features of BDCABLETRAY Ladder Cable Tray
Excellent Ventilation
The open ladder structure allows heat to escape, helping maintain cable performance and reducing the risk of overheating.
High Load Capacity
Designed for heavy-duty applications, ladder cable trays can support large quantities of power and control cables over long distances.
Easy Cable Installation
The open structure allows installers to place, remove, or replace cables without dismantling the tray system.
Durable Construction
Manufactured from premium materials, the tray performs reliably even in demanding industrial environments.
Flexible Installation
The system can be combined with bends, tees, reducers, vertical risers, and accessories to match different cable routing requirements.
Material Options
Pre-Galvanized Steel
An economical choice for indoor electrical installations with low humidity.
Hot-Dip Galvanized Steel
Offers excellent corrosion resistance for outdoor projects and industrial environments.
Stainless Steel
Recommended for chemical plants, food factories, pharmaceutical facilities, and coastal regions.
Aluminum Alloy
A lightweight option that provides excellent corrosion resistance while reducing structural load.
Typical Applications
Power Distribution Systems
Support large power cables inside substations, factories, and utility projects.
Manufacturing Plants
Organize electrical wiring for production lines, machinery, and automated equipment.

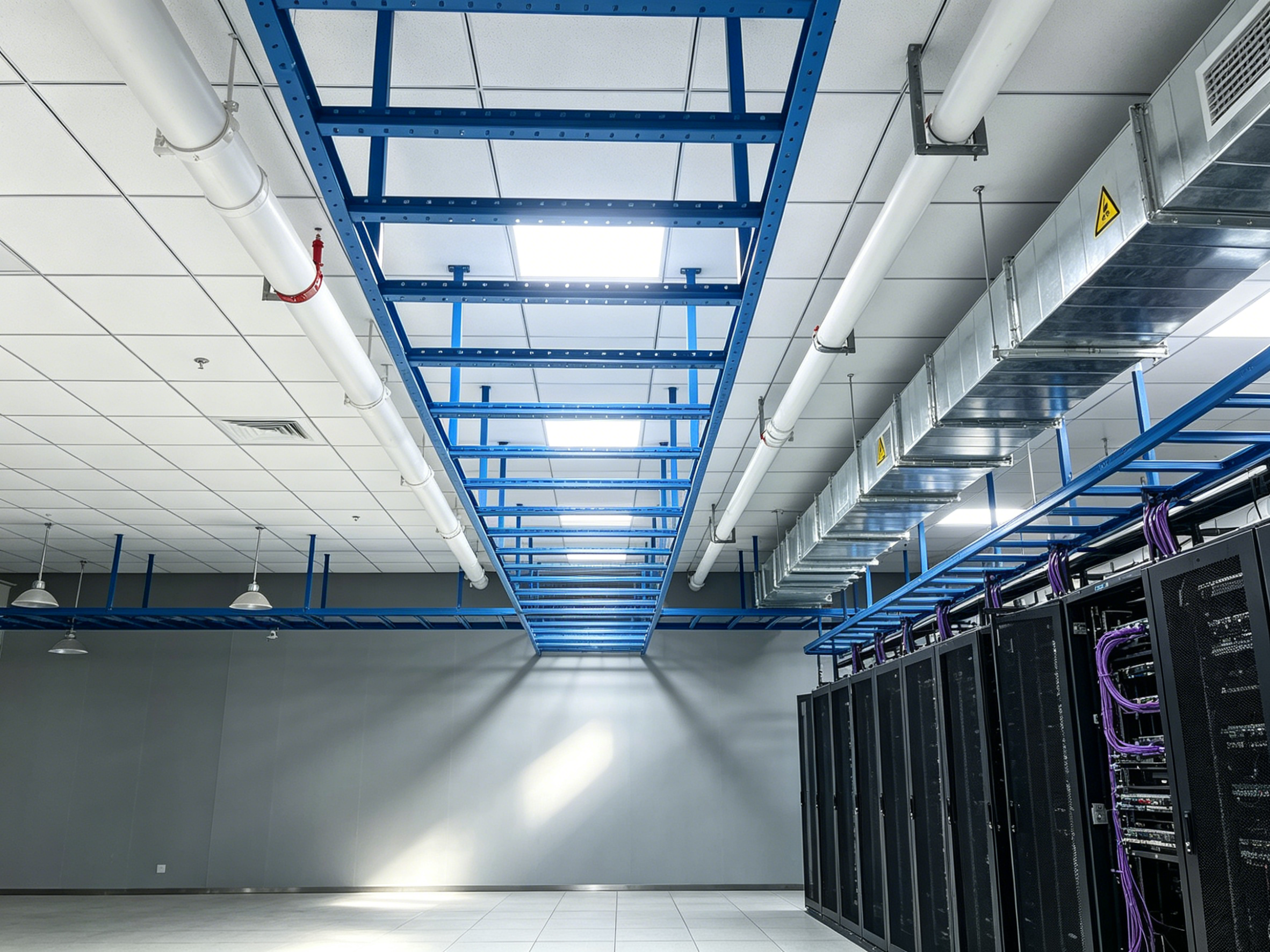

Data Centers
Separate power cables from communication systems for improved cable management.
Oil and Gas Facilities
Provide durable cable support in harsh industrial environments.
Commercial Buildings
Manage electrical distribution systems in shopping centers, office buildings, and hotels.
Renewable Energy Projects
Widely used in solar farms, wind power stations, and energy storage facilities.
Product Specifications
Width Range
150 mm – 900 mm
Side Rail Height
50 mm – 150 mm
Standard Length
2 m
2.5 m
3 m
Material Thickness
1.2 mm – 3.0 mm
Surface Finish
Pre-Galvanized
Hot-Dip Galvanized
Powder Coated
Stainless Steel
Aluminum Alloy
Benefits of Choosing Ladder Cable Tray
Better Heat Dissipation
The ladder design improves airflow, helping cables operate within safe temperature limits.
Simplified Maintenance
Technicians can inspect and replace cables quickly without removing tray covers.
Lower Installation Cost
The lightweight structure and modular accessories reduce installation time and labor.
Long Service Life
Quality materials and protective finishes ensure dependable performance for many years.
Accessories Available
Horizontal Bend
Provides smooth cable routing around corners.
Vertical Bend
Allows cable transitions between different elevations.
Tee Connector
Creates branch cable routes where needed.
Cross Connector
Supports multiple cable directions at a single junction.
Coupler Plate
Ensures secure connections between tray sections.
Support Brackets
Available in wall-mounted, ceiling-mounted, and floor-supported designs.
Why Choose BDCABLETRAY?
Experienced Manufacturer
With more than 30 years of manufacturing experience, BDCABLETRAY supplies cable tray systems to customers across a wide range of industries.
Custom Production
Tray dimensions, materials, finishes, and accessories can all be manufactured according to project specifications.
Strict Quality Inspection
Each production batch undergoes dimensional inspection, load testing, and surface quality checks before shipment.
Fast Delivery
Efficient production lines and professional logistics help keep projects on schedule.
Global Export Service
Our cable tray systems are exported to Europe, North America, Southeast Asia, the Middle East, Australia, Africa, and South America.
How to Select the Right Ladder Cable Tray
Determine Cable Load
The size of the tray should match both current cable capacity and future expansion plans.
Choose the Correct Material
Indoor environments often use galvanized steel, while outdoor or corrosive environments may require stainless steel or aluminum alloy.
Consider Installation Conditions
Support spacing, cable weight, and environmental factors should all be considered during system design.
Use Matching Accessories
Selecting compatible fittings improves installation efficiency and creates a more reliable cable management system.
Conclusion
A Ladder Cable Tray is one of the most dependable solutions for supporting power and control cables in industrial and commercial projects. Its open structure provides excellent ventilation, high load capacity, and convenient cable access, making it suitable for a wide range of applications.
BDCABLETRAY combines advanced manufacturing technology with decades of industry experience to deliver reliable cable tray systems that meet international project requirements. Whether you need a standard product or a fully customized solution, our team is ready to support your next cable management project.
Feel free to contact BDCABLETRAY anytime for detailed quotes and personalized technical guidance.
FAQ
What is a Ladder Cable Tray?
A Ladder Cable Tray is an open cable support system with two side rails and cross rungs. It is designed to support power, control, and communication cables while allowing excellent airflow and easy maintenance.
What are the advantages of a Ladder Cable Tray?
Ladder Cable Trays offer high load capacity, excellent heat dissipation, quick cable installation, simple maintenance, and long service life, making them ideal for industrial and commercial projects.
Which materials does BDCABLETRAY offer for Ladder Cable Trays?
BDCABLETRAY manufactures Ladder Cable Trays in pre-galvanized steel, hot-dip galvanized steel, stainless steel, and aluminum alloy to meet different environmental requirements.
Can BDCABLETRAY provide customized Ladder Cable Trays?
Yes. We offer custom widths, side rail heights, lengths, material thicknesses, surface finishes, and complete accessory systems based on project specifications.
Why choose BDCABLETRAY as your Ladder Cable Tray supplier?
With over 30 years of manufacturing experience, advanced production equipment, strict quality control, OEM & ODM capabilities, factory-direct pricing, and worldwide export services, BDCABLETRAY provides reliable cable management solutions trusted by customers around the globe.
