Project Overview
A leading chemical manufacturer in Southeast Asia planned to expand its production facility with new reaction units, storage tanks, and automated control systems. Due to the highly corrosive operating environment, conventional steel cable trays would require frequent maintenance and could suffer premature corrosion.
The client approached BDCABLETRAY, a trusted FRP Cable Tray Factory, to develop a cable management system capable of withstanding chemical exposure, high humidity, and continuous outdoor operation.
After evaluating the project conditions, BDCABLETRAY designed and manufactured a complete FRP Cable Tray solution that delivered outstanding corrosion resistance, reduced maintenance costs, and ensured reliable cable protection.
Project Challenges
Highly Corrosive Environment
Production areas contained acidic gases, alkaline vapors, and chemical liquids that could rapidly damage conventional galvanized steel cable trays.
Outdoor Installation
Most cable routes were installed outdoors, where strong UV radiation, heavy rainfall, and temperature fluctuations required excellent weather resistance.
Heavy Cable Loads
Large-diameter power cables and instrumentation cables required a tray system with high structural strength and long-span support capability.
Low Maintenance Requirement
The customer expected a cable management solution with a long service life and minimal maintenance interruptions.
BDCABLETRAY Engineering Solution
Customized FRP Cable Tray Design
Our engineering team designed tray widths and support spacing based on cable load calculations and future expansion requirements.
Premium Fiberglass Composite Material
The trays were manufactured using high-strength fiberglass reinforced plastic (FRP) combined with premium resin, delivering excellent corrosion resistance and mechanical performance.
Complete Accessory Package
The project included:
- Horizontal bends
- Vertical elbows
- Tee sections
- Cross fittings
- Reducers
- Coupler plates
- Support brackets
- Stainless steel fasteners
All accessories were manufactured to match the FRP cable tray system, ensuring easy installation and long-term reliability.
Product Specifications
Product Type
FRP Cable Tray
Material
Fiberglass Reinforced Plastic (FRP)
Resin Type
Vinyl Ester Resin
Width
200 mm – 800 mm
Height
100 mm
150 mm
Standard Length
3000 mm
Color
Light Gray
Application
Chemical Processing Plant
Manufacturing Process
High-Quality Raw Materials
BDCABLETRAY selected premium fiberglass rovings and high-performance vinyl ester resin to maximize corrosion resistance and structural strength.
Pultrusion and Molding
Advanced pultrusion technology produced lightweight yet rigid tray profiles with consistent dimensions and excellent load-bearing capacity.
Precision Fabrication
Each cable tray section and fitting was machined according to project drawings to ensure accurate assembly on site.
Quality Inspection
Finished products were tested for dimensional accuracy, flexural strength, corrosion resistance, and surface finish before shipment.
Export Packaging
The trays were securely packed using protective materials to prevent transportation damage during international shipping.

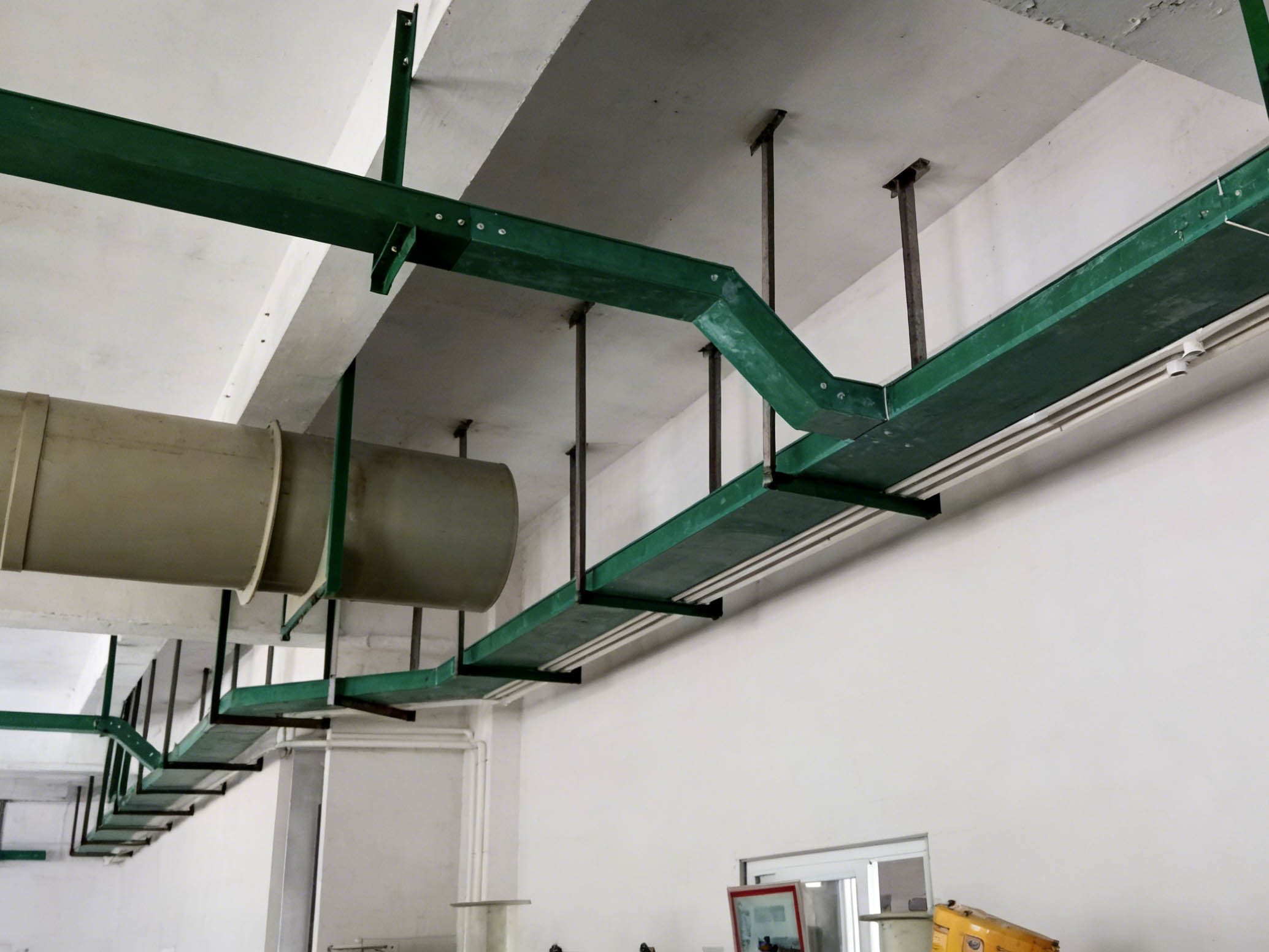

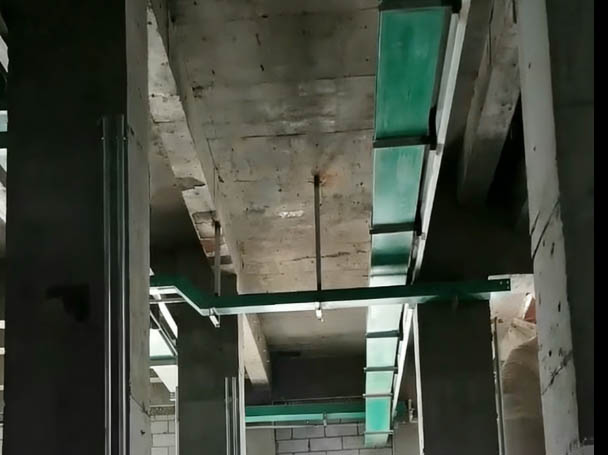

Installation Results
Excellent Corrosion Resistance
After installation, the FRP cable tray system demonstrated exceptional resistance to chemical fumes, moisture, and outdoor weather conditions.
Faster Installation
The lightweight construction allowed workers to install the system more efficiently than traditional steel cable trays, reducing labor costs.
Reduced Maintenance
Unlike metal cable trays, the FRP system required no repainting or anti-corrosion treatment, lowering long-term maintenance expenses.
Reliable Cable Protection
Power cables, control cables, and instrumentation wiring remained securely supported throughout the production facility.
Customer Benefits
Longer Service Life
The corrosion-resistant FRP material significantly extended the expected service life compared with galvanized steel alternatives.
Lower Operating Costs
Reduced maintenance frequency helped decrease shutdown time and maintenance budgets.
Improved Plant Safety
Reliable cable support reduced the risk of cable damage and electrical failures in hazardous production environments.
Future Expansion Flexibility
The modular cable tray design allows additional production lines to be connected without replacing the original system.
Why the Customer Selected BDCABLETRAY
More Than 30 Years of Manufacturing Experience
BDCABLETRAY has supplied cable tray systems to industrial customers across more than 60 countries.
Professional FRP Manufacturing Technology
Our factory specializes in producing corrosion-resistant FRP cable management solutions for demanding industrial environments.
Customized Engineering Support
Every tray layout, support spacing, and accessory selection was optimized according to the customer’s process plant design.
Global Export Capability
From production to logistics, BDCABLETRAY provides complete export services with reliable delivery schedules and professional technical support.
Typical Applications of FRP Cable Tray
Chemical Processing Plants
Petrochemical Facilities
Wastewater Treatment Plants
Offshore Platforms
Marine Engineering Projects
Power Generation Plants
Mining Operations
Renewable Energy Facilities
Conclusion
This FRP Cable Tray Factory Case Study demonstrates how selecting the right cable management system can improve operational reliability while reducing maintenance costs in aggressive industrial environments.
By combining advanced composite materials with customized engineering, BDCABLETRAY delivered an FRP cable tray solution that continues to perform reliably under harsh chemical and outdoor conditions.
If your project requires corrosion-resistant cable management for chemical plants, offshore facilities, wastewater treatment stations, or other demanding environments, contact BDCABLETRAY today. Our engineering team is ready to provide customized FRP cable tray solutions, OEM & ODM manufacturing, competitive factory pricing, and worldwide delivery.
FAQ
What is an FRP Cable Tray?
An FRP Cable Tray is a cable support system manufactured from Fiberglass Reinforced Plastic. It provides outstanding corrosion resistance, lightweight construction, electrical insulation, and long service life, making it ideal for harsh industrial environments.
Why are FRP Cable Trays preferred in chemical plants?
FRP cable trays resist acids, alkalis, salt spray, and moisture much better than traditional steel trays. They require minimal maintenance and perform reliably in corrosive environments.
Can BDCABLETRAY customize FRP Cable Tray systems?
Yes. We manufacture customized FRP cable trays in different widths, heights, resin systems, colors, load capacities, and complete accessory configurations based on customer project requirements.
Which industries commonly use FRP Cable Trays?
FRP cable trays are widely used in chemical plants, petrochemical facilities, wastewater treatment plants, offshore platforms, marine engineering, mining operations, renewable energy projects, and power plants.
Why choose BDCABLETRAY as your FRP Cable Tray Factory?
BDCABLETRAY has over 30 years of manufacturing experience, advanced FRP production technology, strict quality management, OEM & ODM capabilities, and extensive global export experience. We provide customized corrosion-resistant cable tray solutions backed by professional engineering support and factory-direct pricing.
